USD1000.00 - USD6000.00
- Standard:ASTM
- Standard2:ANSI A213M-2001
- Grade Group:CrNi alloy
- Grade:1Cr13Mn9Ni1N
- Section Shape:Round
- Place of Origin:CN;ZHE
- Application:Boiler Pipe
- Technique:Cold Drawn
- Alloy Or Not:Is Alloy
- Certification:ISO 9001 ISO14001 TS16949
- Surface Treatment:oil
- Special Pipe:boiler tubes
- Thickness:0.5 - 12 mm
- Outer Diameter(Round):6 - 127 mm
- Product name:Heat exchanger U tube
- Secondary Or Not:Non-secondary
- Model No:ASTM A213
- Type:Seamless
- Terms Of Trade:FOB
- Brand:Torich
- Certificate:IS9001
- MTC:EN10204 3.1 B EN10204 3.2B
- Application:Heat Exchangers
- U Bending:Yes

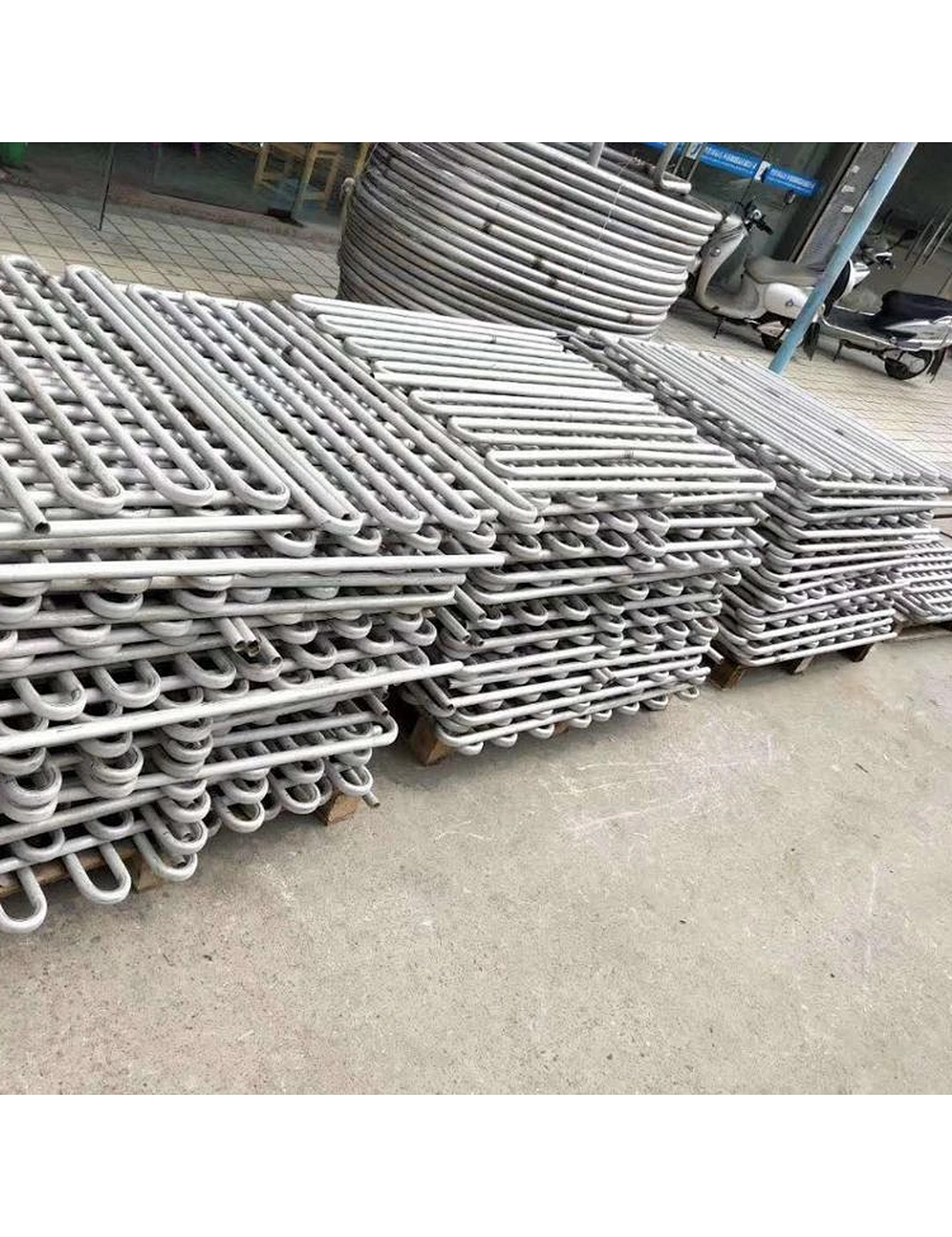

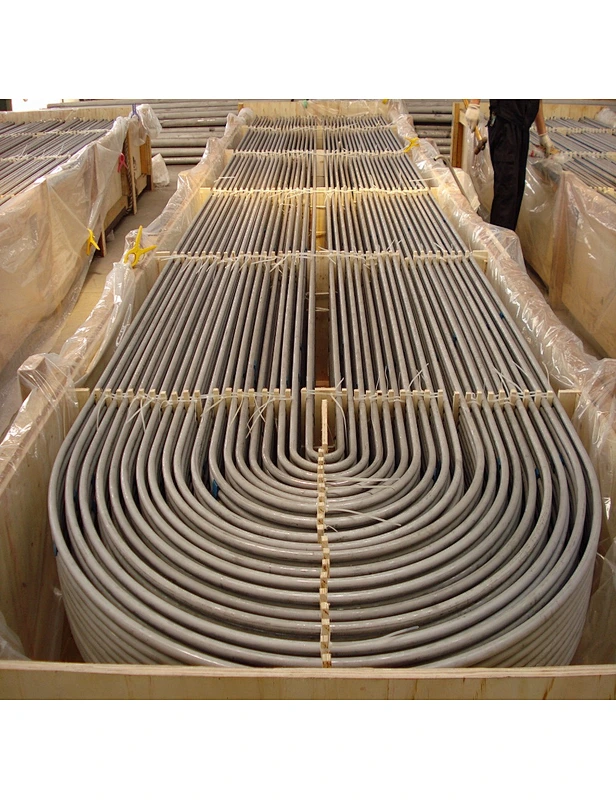

ASTM A213 U Shaped seamless heat exchanger tube
Seamless Steel Tubes SA213 U tubes for boilers and heat exchangers applications
water to air heat exchanger
Size Range:
OD:6-127mm
WT:0.5-12mm
Material:Alloy steel Stainless steel
SA213 long steel tubes, make to U bend tubes for boilers and heat exchangers.
With strong wood structure box packing by containers loading and shipping.
Heater tubes U TUBES with Stainless, Alloy steel grade available, Carbon Steel grade is also available.
Mechanical Properties:
Material | Mechanical Properties | ||
Tensile Strength ≥ MPa | yield strength ≥ MPa | Elongation ≥ % | |
T12 | 415 | 220 | 30 |
TP304 | 515 | 205 | 35 |
TP304L | 458 | 170 | 35 |
TP316 | 515 | 205 | 35 |
TP316L | 485 | 170 | 35 |
TP317 | 515 | 205 | 35 |
TP317L | 515 | 205 | 35 |
TP321 | 515 | 205 | 35 |
SA-213 This specification covers minimum-wall-thickness, seamless ferritic and austenitic steel, boiler and superheater tubes and austenitic steel heat-exchanger tubes, designated Grades T5, TP304, etc. These steels are listed in the specification (Tables 1-3).
180 Degree U 304 Stainless Steel Pipe
Acknowledge:
Gauge-Inch-mm Gauge 12 14 15 16
QUALITY CONTROL
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample of ASTM A213 U Shaped seamless heat exchanger tube for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
