USD600.00 - USD900.00
- Standard:ASTM
- Standard2:ASTM A513-2007
- Grade Group:10#-45#
- Grade:10#
- Grade:20#
- Grade:45#
- Section Shape:Round
- Place of Origin:CN;ZHE
- Application:Gas Pipe
- Technique:Cold Drawn
- Special Pipe:Thick Wall Pipe
- Alloy Or Not:Non-alloy
- Certification:ISO9001
- Surface Treatment:Oiled
- Thickness:0.5 - 50 mm
- Outer Diameter(Round):5 - 420 mm
- Secondary Or Not:Non-secondary
- Standard:ASTM A519
- Brand:TORICH
- Thickness:0.5 - 50 mm
- O.D:5-420mm
- W.T:0.5-50mm
- Length:3-9m
- Usage:Hydraulic Cylinder
- Material:SAE1010,SAE1020
- Technique:Cold Drawn, Cold Drawing

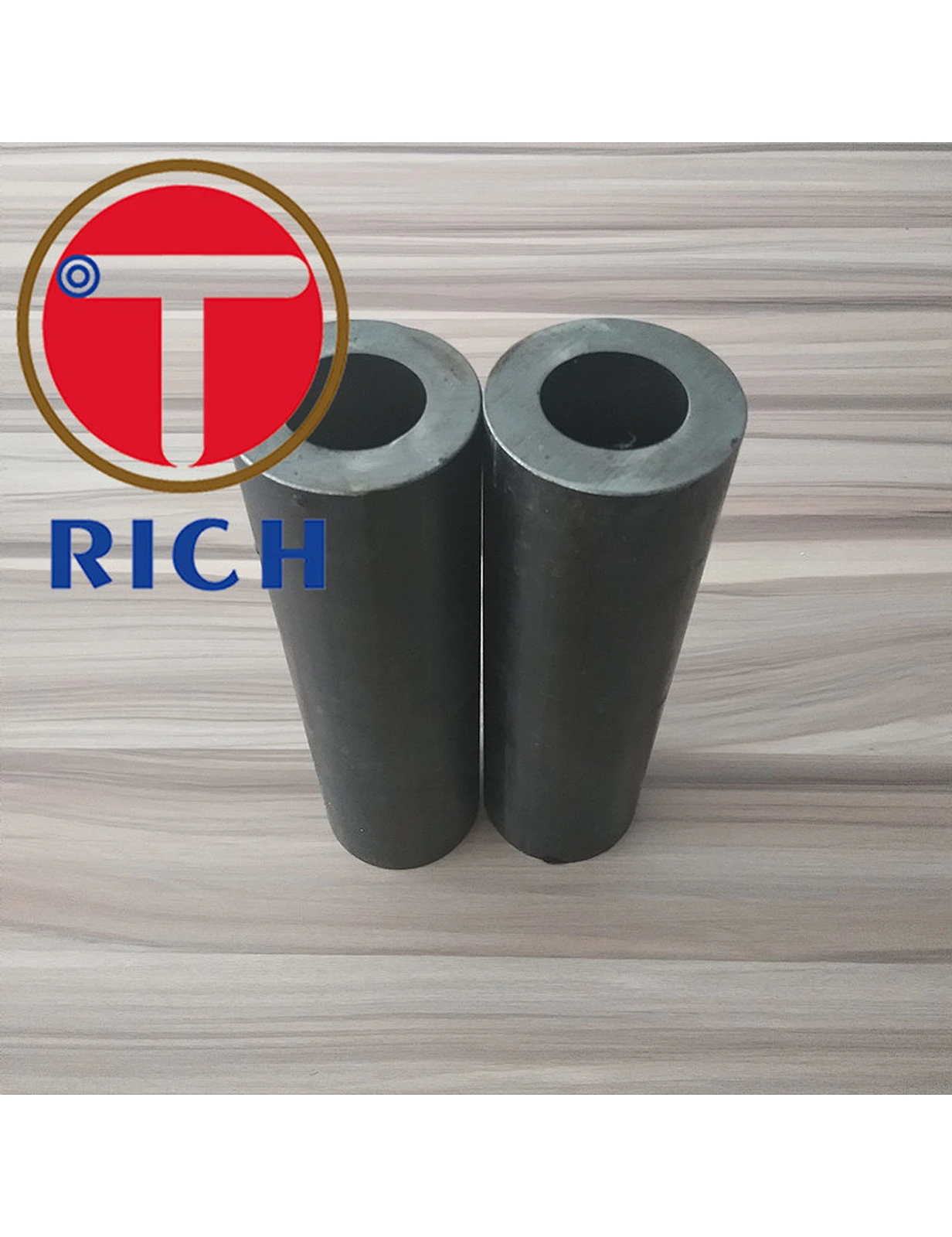

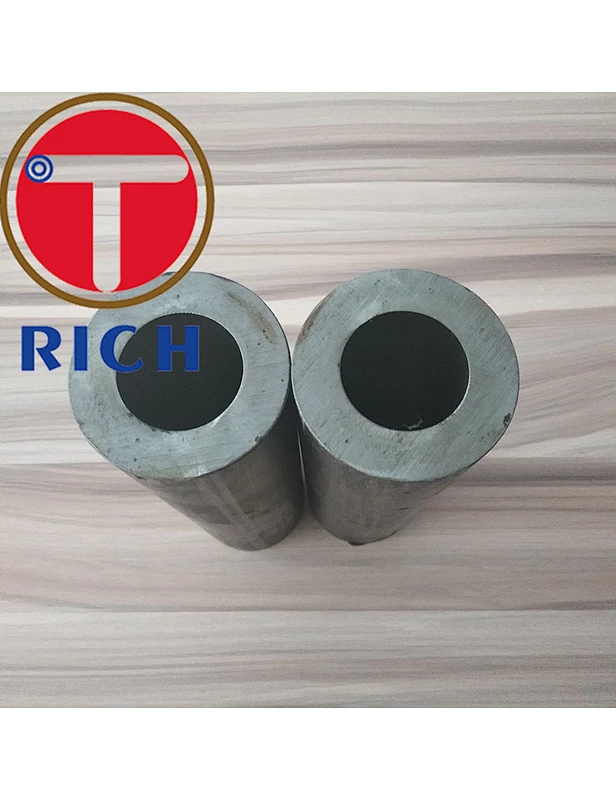

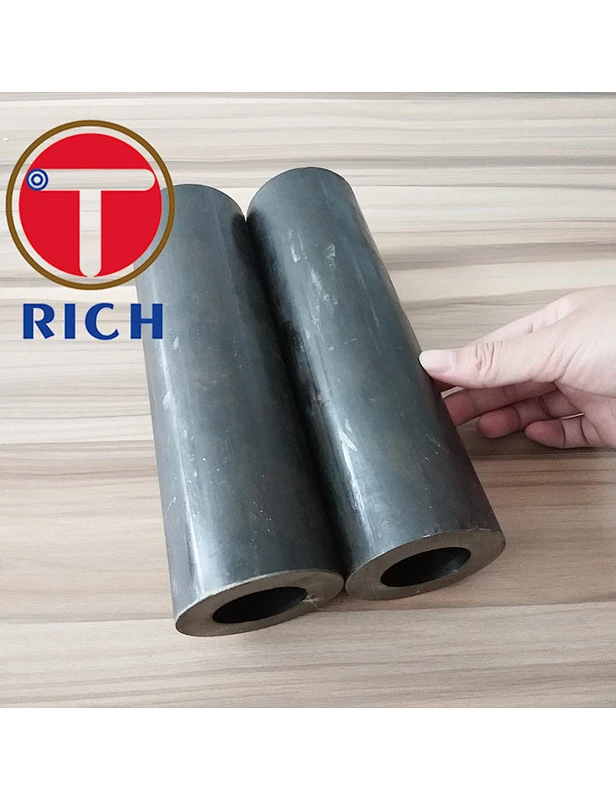

EN10305-1/ASTM A513 Cold Drawn Heavy Wall Mechanical Seamless Honed Tube
- Standard: ASTM A513
- Grade Group: A53-A369
- Thickness: 0.5 - 50 mm
- Outer Diameter(Round): 5 - 420 mm
- Surface Treatment: Bright
- Technique: Cold Drawn, Cold Drawing
- Material: SAE1010,SAE1020,SAE1026,SAE4130,SAE4140
L: max12000mm
1. ASTM A519 Oil cylinder Seamless Carbon and Alloy Steel Mechanical Tubing
2. Steel Grade: SAE1010,SAE1020,SAE1026,SAE4130,SAE4140
3. Porudction Method: Cold drawing + Honing + Skiving Roller Bunish
4. Packing: Could be in Cartons or Wooden Box
We offer Cut to short lengths according to customer reqirement and drawings.
| Chemical composition | ||||||
| Steel Grade | C% | Si% | Mn% | P% | S% | AL% |
| St30Al or E215 | ≤0.10 | ≤0.05 | ≤0.7 | ≤0.025 | ≤0.025 | ≥0.025 |
| St35 or E235 | ≤0.17 | ≤0.35 | 0.4-1.2 | ≤0.025 | ≤0.025 | |
| St45 or E255 | ≤0.21 | ≤0.35 | 0.4-1.1 | ≤0.025 | ≤0.025 | |
| St52 or E355 | ≤0.22 | ≤0.55 | ≤1.6 | ≤0.025 | ≤0.025 | |
| Mechanical properties at room temperature | |||||||||
| Delivery condition | BK | BKW | GBK | NBK (N) | |||||
| steel Grade | Rm Mpa (Min) | A %(Min) | Rm Mpa(Min) | A %(Min) | Rm Mpa(Min) | A %(Min) | Rm Mpa(Min) | ReH Mpa(Min) | A %(Min) |
| St30Al or E215 | 430 | 8 | 380 | 12 | 280 | 30 | 290 to 430 | 215 | 30 |
| St35 or E235 | 480 | 6 | 420 | 10 | 315 | 25 | 340 to 480 | 235 | 25 |
| St45 or E255 | 580 | 5 | 520 | 8 | 390 | 21 | 440 to 570 | 255 | 21 |
| St52 or E355 | 640 | 4 | 580 | 7 | 450 | 22 | 490 to 630 | ||
QUALITY CONTROL
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking.

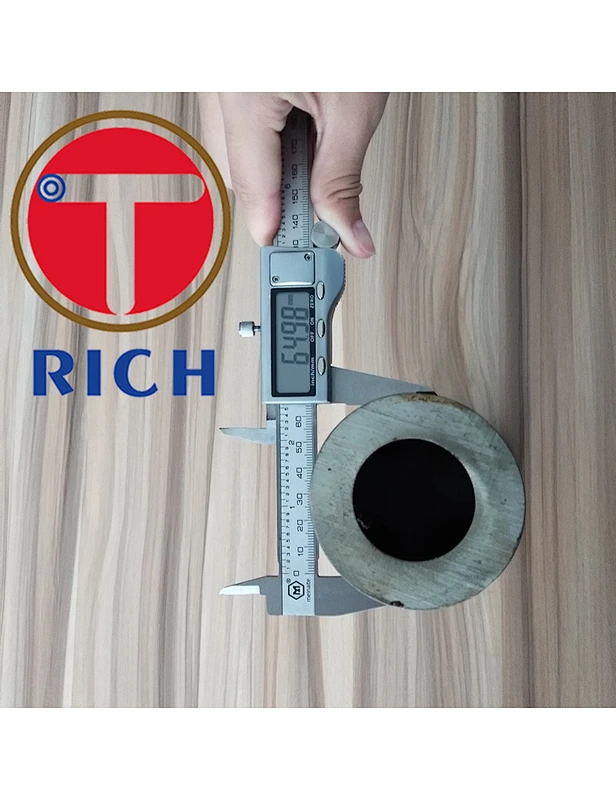

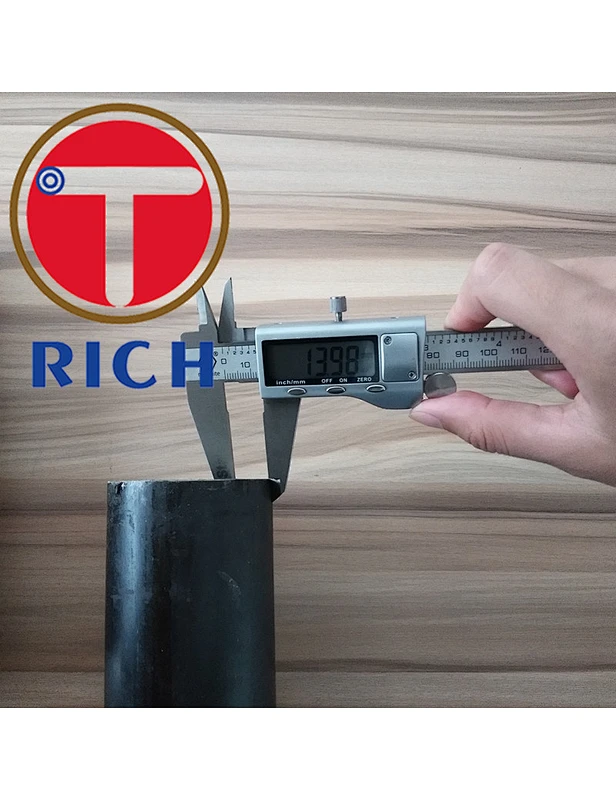

100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
In hexagonal bundles packaging with woven
