USD1000.00 - USD3000.00
- Place of Origin:CN;ZHE
- Alloy Or Not:Is Alloy
- Grade:12CrMo
- Thickness:0.5 - 50 mm
- Outer Diameter(Round):6 - 420 mm
- Special Pipe:API Pipe
- Secondary Or Not:Non-secondary
- Standard2:JIS G3465-2006
- Application:Drill Pipe
- Technique:Cold Drawn
- Certification:API
- Grade Group:Cr-Mo alloy
- Standard:JIS
- Section Shape:Round
- Surface Treatment:oiled
- Product name:GB/T 9808 Alloy Oil Drill Mineral Mining Seamless Steel Tubes
- Keyword:Oil Drill Mineral Mining Seamless Steel Tubes
- Surface:oiled
- Material:ZT380,490,520,540,590,640,740
- Usage:Oil Drill Mineral Mining
- Length:4000-12500mm
- Shape:Round Shape
- OD:6-420mm
- WT:0.5-50mm
- Standard:GB/T 9808, JIS G 3465
GB/T 9808 Alloy Steel Grade Oil Drill Mineral Mining Seamless Steel Tubes
Product Name: GB/T 9808 Alloy Steel Grade Oil Drill Mineral Mining Seamless Steel Tubes
Size range: O.D.:6-420mm W.T.:0.5-50mm L:4000-12500mm according to customers' actual application and production.

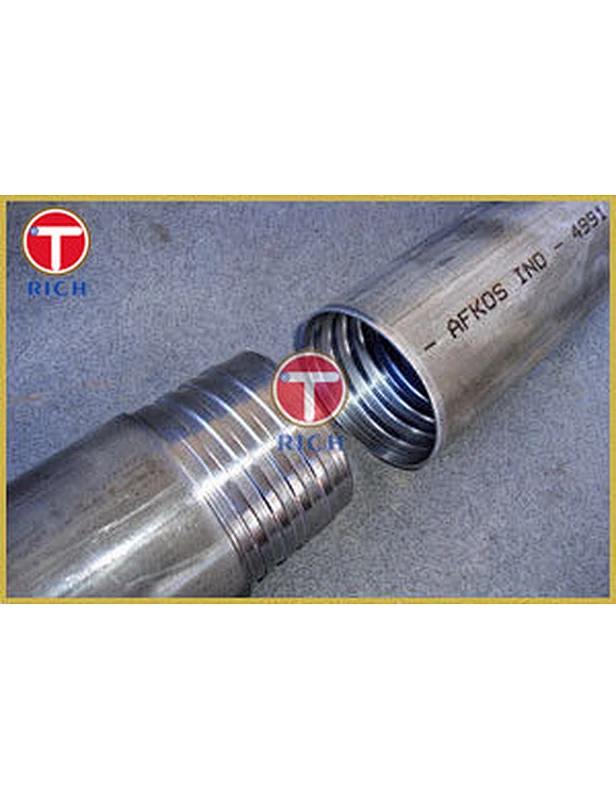

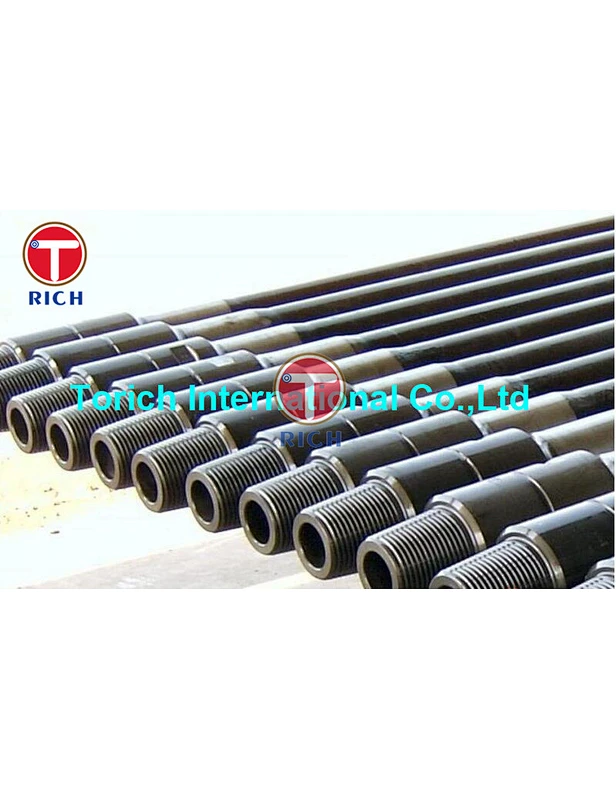

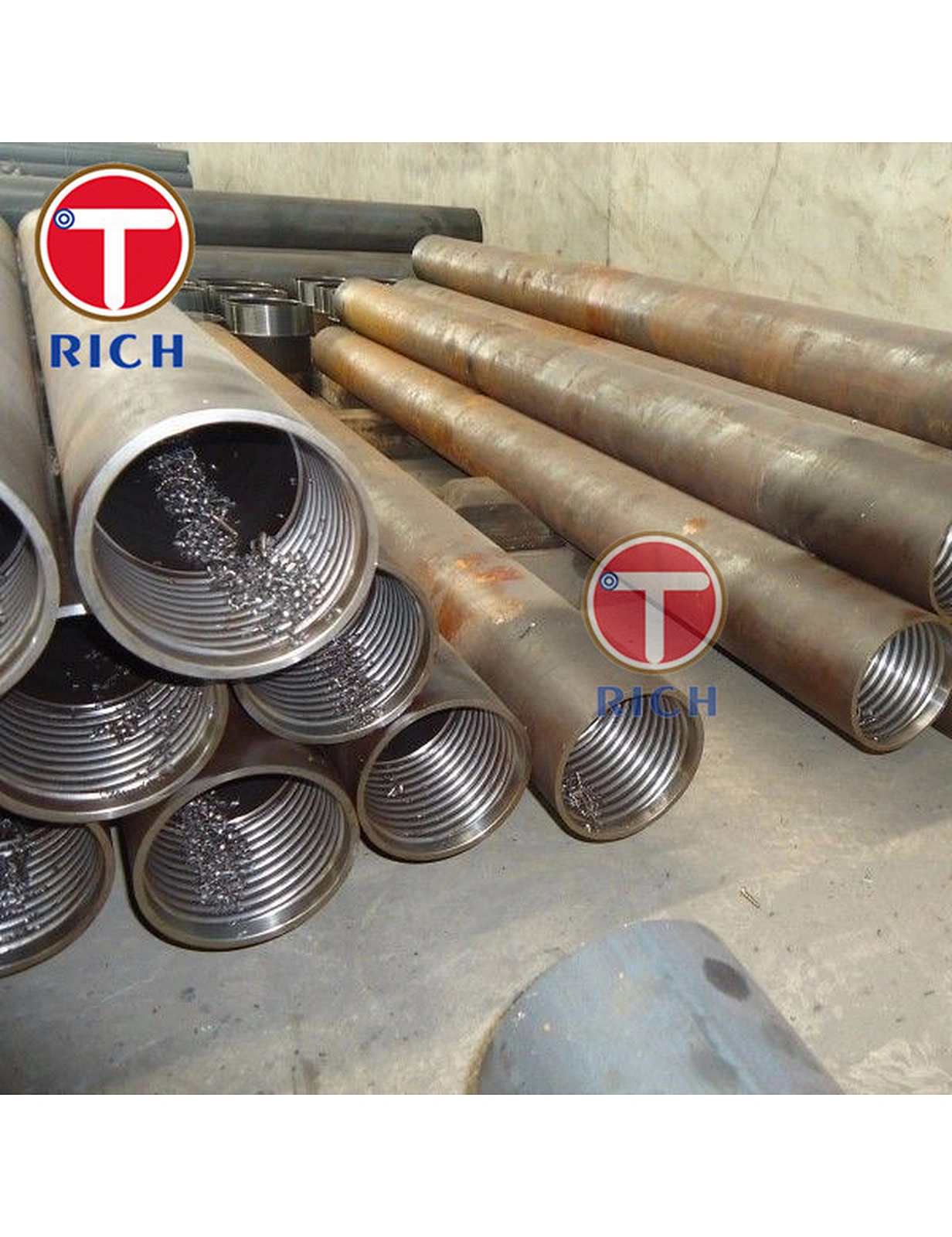

Application : For Geological Drill underground for Oil and Mineral, for Mining Exploration,for Wire Line Drill Rod, Casing Tube, Core Barrel Tubes, Couplings
Steel Grade: ZT380,ZT490,ZT520,ZT540,ZT590,ZT640,ZT740
Heat treatment: Normalized, Q+T
Chemical Compositon
| CHEMICAL COMPOSITION % max | |
| P | S |
| 0.030 | 0.030 |
Tolerance
| Standard | Producton Method | Tube Size | Tolerance | |
| GB/T 9808-2008 | Hot rolled | OD | (+1.0%D) +0.65 (-0.5%D) -0.35 | |
| WT | ≤10 | (+15%S) +0.45 (-10%S) -0.35 | ||
| >10 | (+12.5%S, -10%S) | |||
| Cold Drawn | OD | ±0.50%D or ±0.20 | ||
| WT | ±8%S or ±0.15 | |||
| Q(N)/ T118-2010 | Cold Drawn | OD | OD | ±0.40%D or ±0.20 |
| WT | WT | ±7%S or ±0.15 | ||
Chemical composition
| Stee Grade | C | Si | Mn | P max | S max | Cu max | Cr | Mo | B |
| T600 (45MnMoB) | 0.43-0.48 | 0.17-0.37 | 1.05-1.35 | 0.02 | 0.015 | 0.20 | ~ | 0.20-0.25 | 0.001- 0.005 |
| T750 (30CrMnSiA) | 0.28-0.34 | 0.90-1.20 | 0.80-1.10 | 0.02 | 0.015 | 0.20 | 0.8-1.1 | ~ | ~ |
| T850 4140 | 0.38-0.43 | 0.17-0.35 | 0.70-0.90 | 0.02 | 0.015 | 0.20 | 0.9-1.1 | 0.15- 0.25 | ~ |
Mechanical Properties:
| Steel | Tensile Strength Mpa | Yield Point Mpa | Elongation % | Heat treatment |
| Grade | min | |||
| ZT380 | 640 | 380 | 14 | Normlized |
| ZT490 | 690 | 490 | 12 | Normlized |
| ZT540 | 740 | 590 | 12 | Normlized |
| ZT590 | 770 | 590 | 12 | Normlized |
| ZT640 | 790 | 640 | 12 | QT |
| ZT740 | 840 | 740 | 10 | QT |
| T850 | 950 | 850 | 15 | QT |
Torich Strength:
1. Torich is the STEEL TUBE MAKER company in China,playing a significant role in domestic market as well as international market.
2. Our products have exported to over 56 countries worldwide, winning a great fame among our customers.
3. There was no quality claim in the past 3 years.
4. First production was started since 1997, our boss worked in steel tube industry for over 10 years before started the own factory, factory engineers with over 30 years manufacturing experience, knowing well about production and inspection technology.
5. We have been exporting steel tubes since 10 years ago, and know well about international standard for steel tubes DIN/EN,ASTM,SAE,BS,GOST,JIS etc,also with great experience of International trading practices.
6. Our team take Timely action within 24 hours after receiving customers' first requirement and enquiry.
7. 100% prompt delivery in the past 3 years.
8. 100% dimensional check and 100% visual inspection on tube surfaces.
9. 100% eddy current test and ultrasonic test for detecting longitudinal and transversal defects.
10.Convenient tranportation: production location is 30 mins high speed train from Shanghai, 2 hours drive from Shanghai
What is your Guarantee?
1.SO9001:2008 and TS16949 certification, SGS, BV, TUV or other third party inspection is available.
2.High quality with competitive price.
3.Advanced technology, experienced engineer, ISO quality system for quality assurance and traceability.
Do you have agent or distributor in our country?
1.We are recruiting area agent and distributor all over the world, welcome to send us your mail or call us for detail discussion.
How is your production capability?
1.2000 tons monthly production capacity, 5000 tons monthly trading capability
2.Prompt and Timely shipment
How to get the sample?
1.You are requested to pay for sample charges and courier charges from China to your country; and the free sample is according the product like size, steel grade and quantity, please consult our sales for details
2.Sample charges will be refunded when order is placed.
What is your Payment Term?
1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
3.Upon negotiation
GB/T 9808 Alloy Steel Grade Oil Drill Mineral Mining Seamless Steel Tubes
