USD900.00 - USD4000.00
- Place of Origin:CN;ZHE
- Grade:A335 P1
- Grade:A335 P11
- Grade:A335 P12
- Grade:A335 P5
- Grade:A335 P9
- Grade:A335 P91
- Grade:A335 P92
- Thickness:1 - 50 mm
- Outer Diameter(Round):6 - 420 mm
- Grade Group:A53-A369
- Secondary Or Not:Non-secondary
- Technique:Cold Drawn
- Application:Boiler Pipe
- Standard2:ASTM A335-2006
- Section Shape:Round
- Standard:ASTM
- Alloy Or Not:Is Alloy
- Surface Treatment:oil
- Certification:ISO
- Special Pipe:boiler tubes
- Product name:Cold Drawn a335 p91 P122Alloy Steel Pipe Price Per Ton
- Keywords:a335 p91 alloy steel pipe price per ton
- Brand Name:Torich
- Model Number:ASTM A335
- End protector:Plain
- Length:1-12m
- Type:SMLS
- Shape:Round Shape
- Material:alloy steel
- MTC:En10204.3.2B
a335 p91 alloy steel pipe price per ton

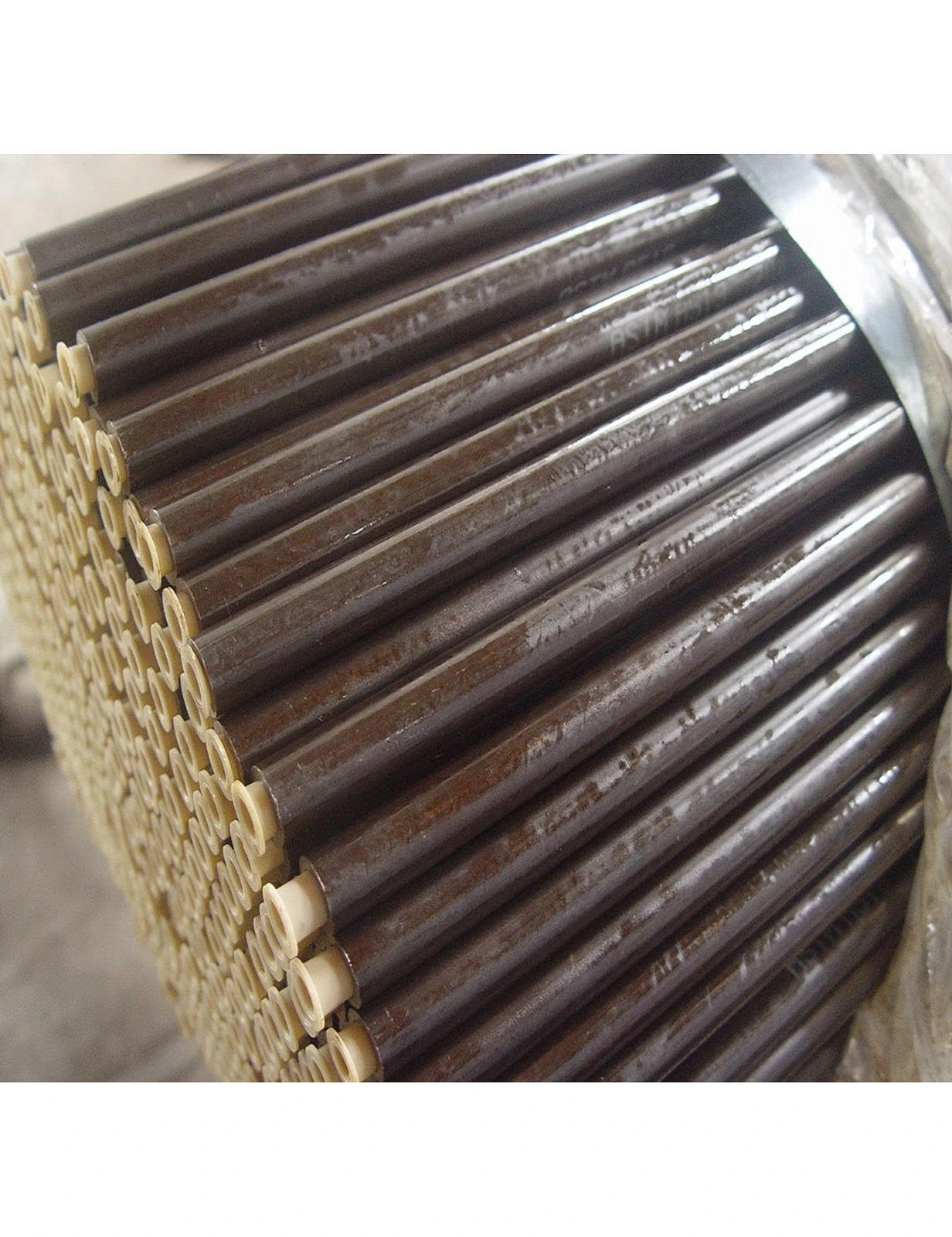

Cold Drawn a335 p91 P122Alloy Steel Pipe Price Per Ton
ASTM A335 Steel Ferritic Alloy Tubes Pipe for High-Temperature and Boilers
ASTM A335 Seamless ferritic and alloy steel pipe for high temperature service
Applications: for Boilers,Superheaters,Heat-Exchangers
Size range: O.D.:6-420mm W.T.:1-50mm L: according to customer requirement
Cold Drawn a335 p91 P122Alloy Steel Pipe Price Per Ton
| Steel Grade and Chemical Compositions: | |||||||
| Steel Grade | C | Mn | P | S | Si | Cr | Mo |
| max | max | max | max | max | min | ||
| P5 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | 4.00-6.00 | 0.45-0.65 |
| P9 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.90-1.10 |
| P11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
| P12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | 0.50 | 0.80-1.25 | 0.44-0.65 |
| P21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | 2.65-3.35 | 0.80-1.06 |
| P22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | 1.90-2.60 | 0.87-1.13 |
| P91 | 0.08-0.12 | 0.30-0.60 | 0.020 | 0.010 | 0.20-0.50 | 8.00-9.50 | 0.85-1.05 |
| P92 | 0.07-0.13 | 0.30-0.60 | 0.020 | 0.010 | 0.50 | 8.50-9.50 | 0.30-0.60 |
| Steel Grade | Tensile Strength | Yield Strength | Elongation | Hardness.Max | ||
| min.ksi [Mpa] | min.ksi [Mpa] | % | Brinell/Vickers | Rockwell | ||
| P1, P2 | 55[380] | 30[205] | 20 | |||
| P12 | 60[415] | 32[220] | 20 | |||
| P23 | 74[510] | 58[400] | 20 | |||
| P91 | 85[585] | 60[415] | 30 | 250 HB/265 HV | 25 HRC | |
| P92, P911 | 90[620] | 64[440] | 30 | 250 HB/265 HV | 25 HRC | |
| P122 | 90[620] | 58[400] | 30 | 250 HB/265 HV | 25 HRC | |
Cold Drawn a335 p91 P122Alloy Steel Pipe Price Per Ton
Reference Docuemtents:
ASTM A450/A 450M Specification for General Requirements for Carbon, Ferritic Alloy, and Austentic
Alloy Steel Tubes
ASTM A999/A 999M Specification for General Requirements for Alloy and Stainless Steel Pipe
ASTM E213 Practice for Ultrasonic Examination of Metal Pipe and Tubing
ASTM E309 Practice for Eddy-Currend Examination of Steel Tubular Products Using
Magnetic Saturation
ASTM E381 Method of Maroetch Testing Steel Bars, Billets, Blooms, and Forings
ASTM E527 Practice for Numbering Metals and Alloys
ASTM E570 Practice for Flux Leakage Examination of Ferromagnetic Steel Tubular Products
SNT-TC-1A Recommended Practice for Nondestructive Personnel Qualification and Certification
SEA J 1086 Practice for Numbering Metals and Alloys
QUALITY CONTROL
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample of Cold Drawn a335 p91 P122Alloy Steel Pipe Price Per Ton for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
