TORICH 13crmo44 4130 42crmo4 schedule 40 steam boiler industrial boiler carbon and Alloy steel tube
FOB
Quantity
  • Standard:ASTM
  • Standard2:ASTM A106-2006
  • Standard2:ASTM A312-2007
  • Standard2:ANSI A213-2001
  • Standard2:ASTM A179-1990
  • Grade Group:10#-45#
  • Grade:10#
  • Grade:20#
  • Grade:45#
  • Grade Group:Q195-Q345
  • Grade:Q235
  • Grade:Q215
  • Grade:Q345
  • Grade:Q195
  • Section Shape:Round
  • Place of Origin:CN
  • Application:Boiler Pipe
  • Technique:Cold Drawn
  • Certification:CE
  • Surface Treatment:Galvanized
  • Special Pipe:API Pipe
  • Alloy Or Not:Is Alloy
  • Thickness:5 - 30 mm
  • Outer Diameter(Round):10 - 140 mm
  • MOQ:5 Tons
  • End protector:Plastic Pipe Cap
  • Surface:Customers't Requirement
  • Usage:Construction Structure

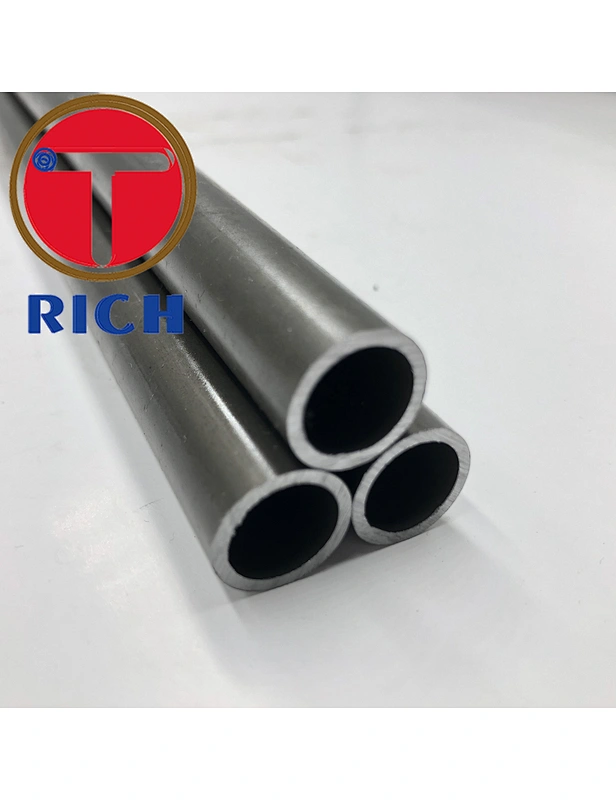

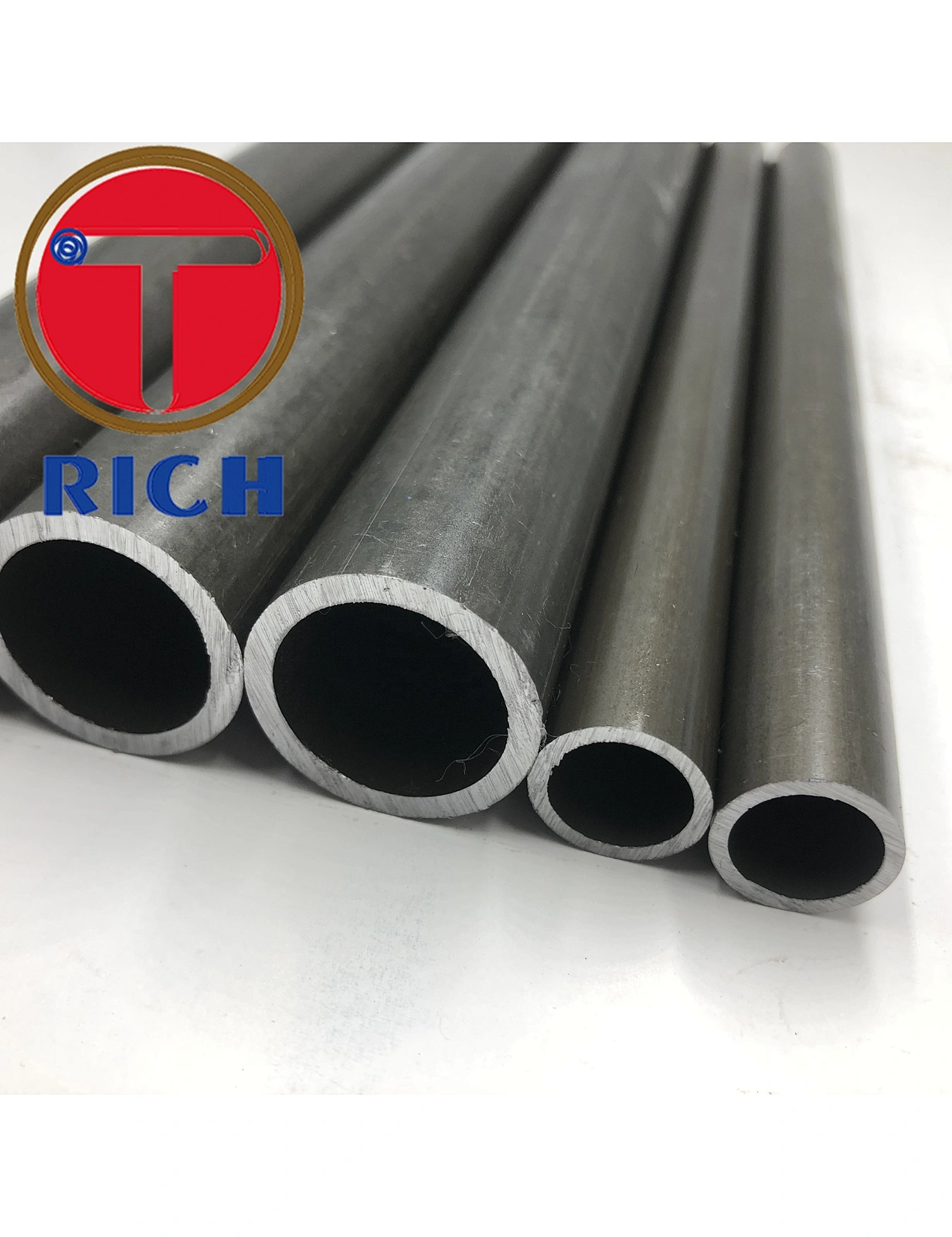

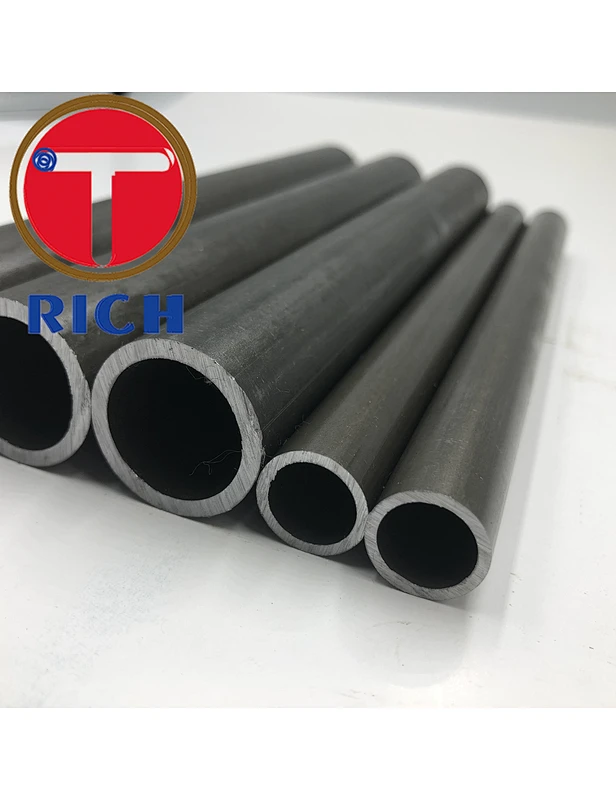

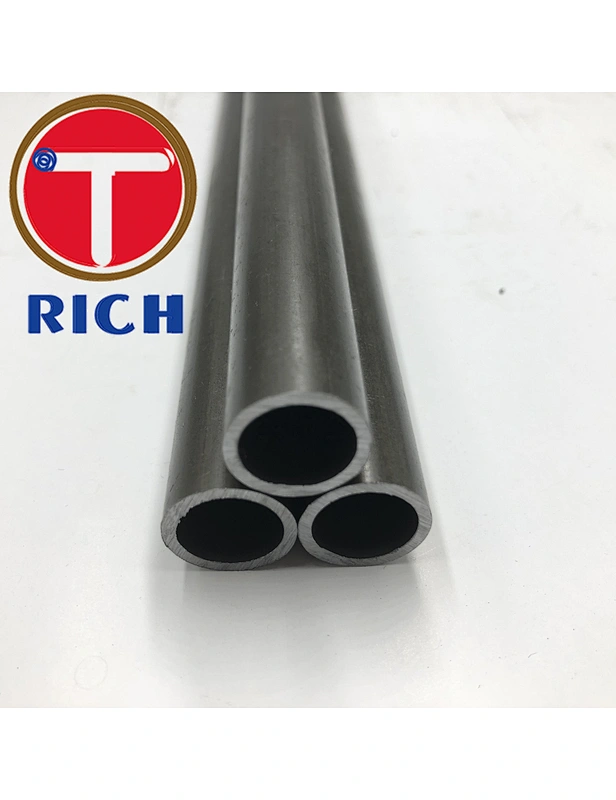

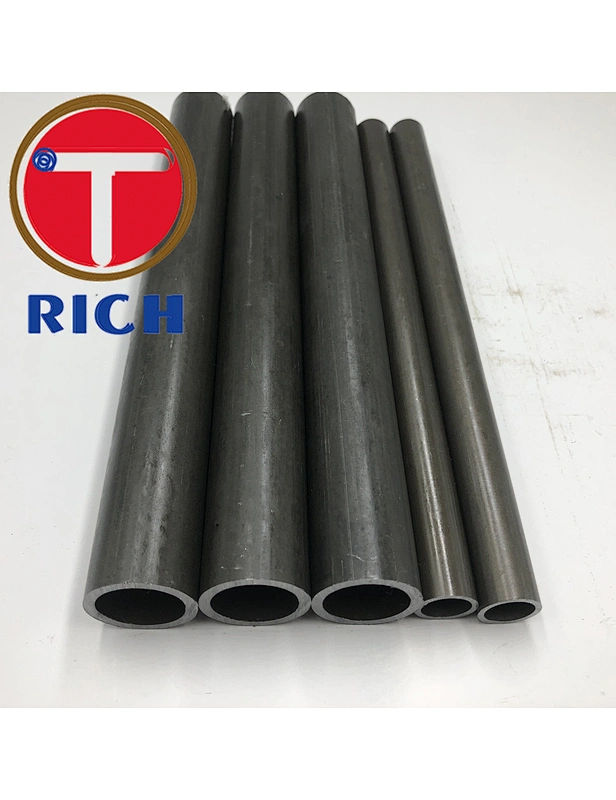

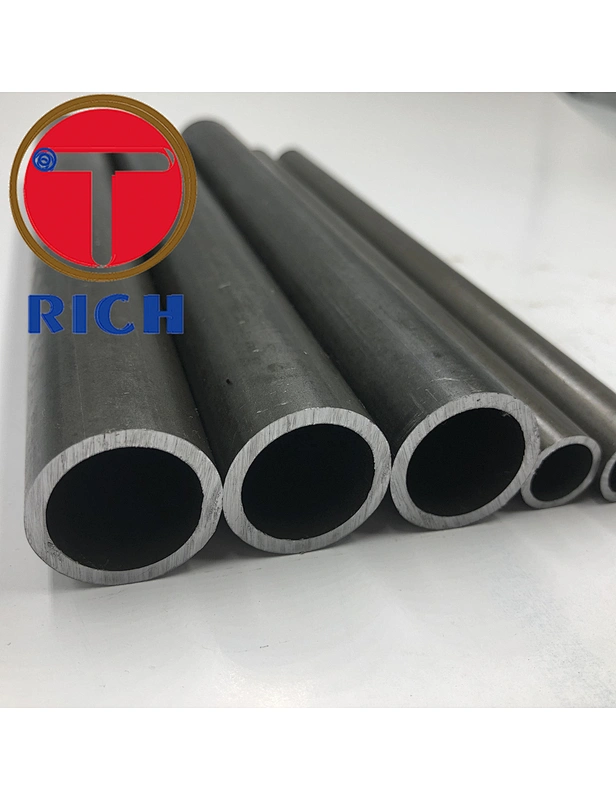

TORICH 13crmo44 4130 42crmo4 schedule 40 steam boiler industrial boiler carbon and Alloy steel tube



Grade: JIS SCM430, DIN 30GrMo4,  SAE4130/ AISI4130

Size:O.D.:6-350mm W.T.:1-35mm L:max12000mm

Standard:  ASTM A519

Certification:ISO9001,TS16949

Applications:for Auto industry/for machinery use/Motorcycle frame





Delivery Conditions

1)  BKW (+LC)      After last heat treatment there is a light finishing pass (cold drawing)

2)  BKS (+SR) After the final cold forming process the tubes are stress relieve annealed.

3)  GBK (+A)  After the final cold forming process the tubes are annealed in a controlled atmosphere.

4)  NBK (+N)  After the final cold forming process the tubes are annealed above the upper transformation point in acontrolled atmosphere.



Chemical Composition and Mechanical Property:

Chemical Composition(%)

Mechanical Property

C

Si

Mn

S

P

Cr

Ni

Cu

Mo

Yield Strength

Tensile Strength

( σs )

( σb )

0.28~0.33

0.15~0.30

0.40~0.60

≤0.04

≤0.035

≤0.15

0.80~1.10

/

 0.15~0.25

≥785(80)
(MPa)

≥930(95)

(MPa)





 Wall Thickness:

2mm-120mm

 Length:

2m-12m

Producing Standard:

  • American ASME B36.10M, ASTM, API 5L, API 5CT
  • Japanese JIS
  • German DIN
  • Chinese GB
  • BS standard

 Main Material:

(Carbon Steel & Low Alloy steel)

  • ASTM A53, A106, A210, A252, A333 etc;
  • X42, X46, X52, X60, X65, X70 etc;
  • JIS STPG42, G3454, G3456 etc;
  • German St37, St42, St45, St52, DIN1626, DIN17175
  • Chinese 20#, Q345, 16Mn etc

Usage:

  • Widely used in the mechanical treatment field, petrochemical industry, transport and construction field
  • Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;
  • The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc
  • Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc














QUALITY CONTROL

1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness,                  Impact, Mictrostruture etc
8~ Packing and Stocking.
