SAE J526 UNS G10080 / UNS G10100 Cold Drawn Welded Low Carbon Steel Tubing from China Manufacturer

PRODUCTS

Categories

SAE J526 UNS G10080 / UNS G10100 Cold Drawn Welded Low Carbon Steel Tubing

price

USD2000.00 - USD5000.00

Delivery FOB

Minimum order quantity 5 tons

Supply Ability 50000tons / Year

Country of Origin SHANGHAI/NINGBO

Quantity

Place of Origin:CN;ZHE
Alloy Or Not:Non-alloy
Grade:10#
Grade:45#
Thickness:0.5 - 15 mm
Outer Diameter(Round):1 - 100 mm
Secondary Or Not:Non-secondary
Standard2:ASTM A513-2007
Application:Hydraulic Pipe
Technique:Cold Drawn
Grade Group:10#-45#
Standard:ASTM
Section Shape:Round
Surface Treatment:oiled
Special Pipe:Low carbon steel tube
Certification:ISO9001
Surface:Customers't Requirement
Name: Cold Drawn Welded Low Carbon Steel Tubing
Material:low carbon steel
End protector:Reqeust
Length:1-12m
Usage:Automotive,refrigeration,hydraulic
packing:In bundles or in wooden boxes packaging
Keyword:low carbon steel

Standard:	SAE J526	Material:	UNS G10080 Or UNS G10100
Manufacture:	Cold Drawn Welded Tube	Application:	Automotive,refrigeration,hydraulic

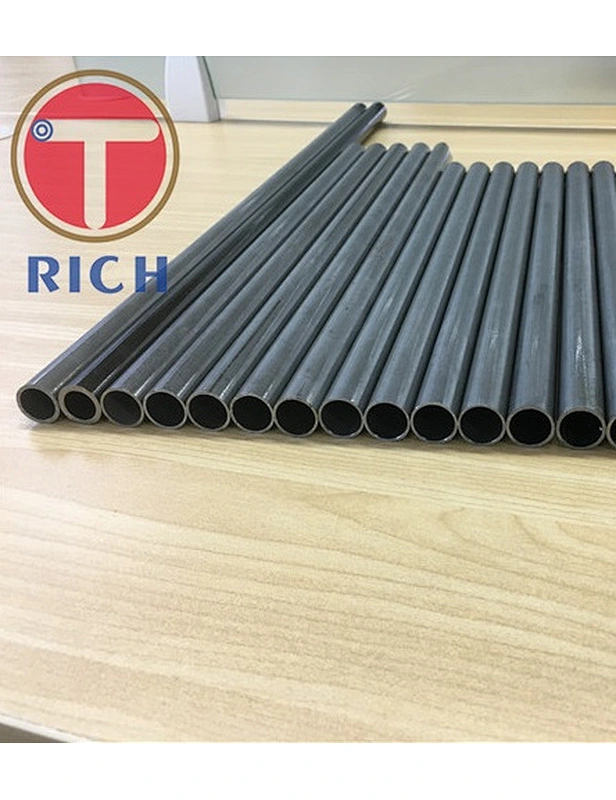

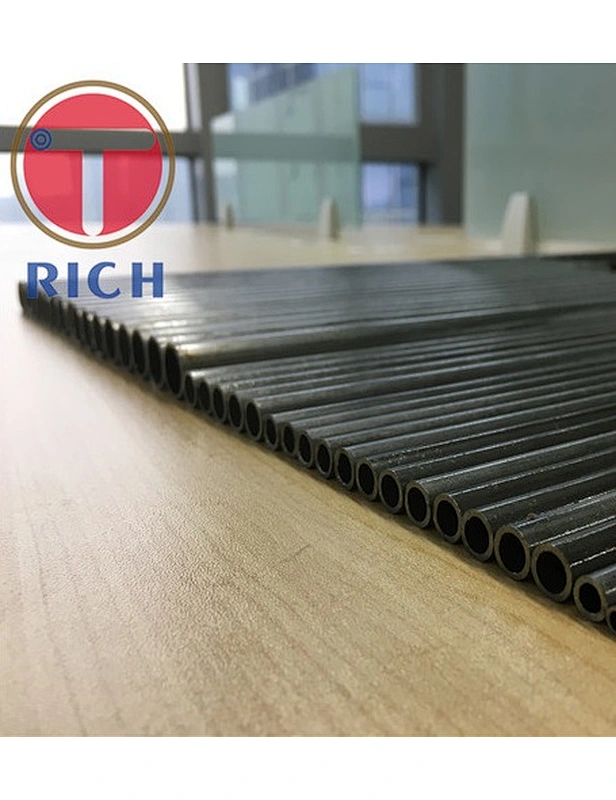

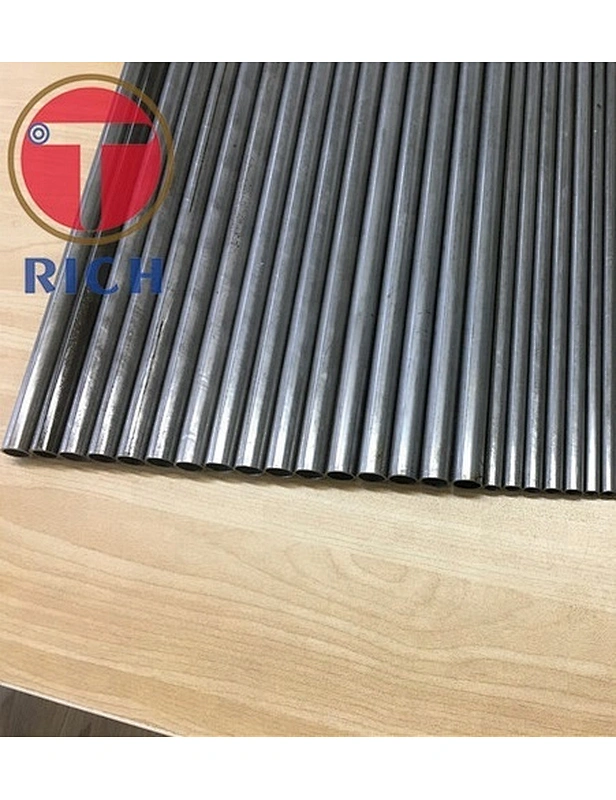

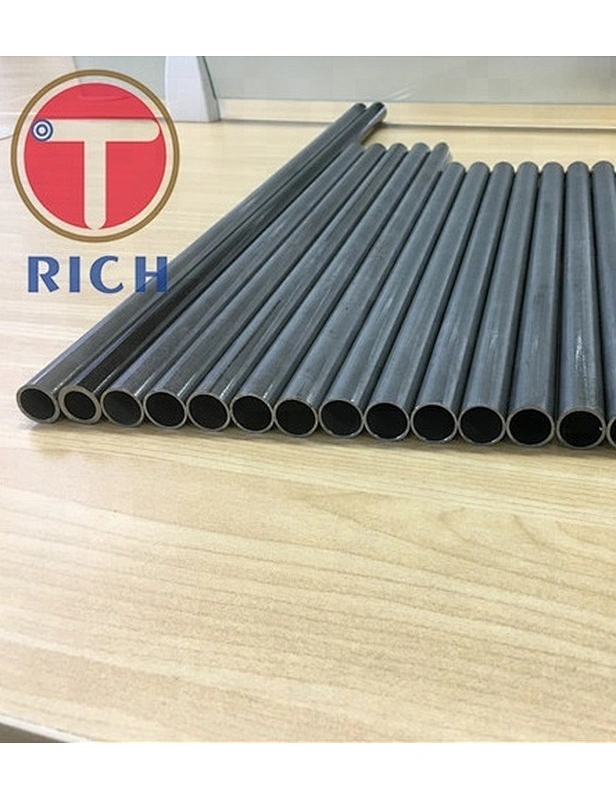

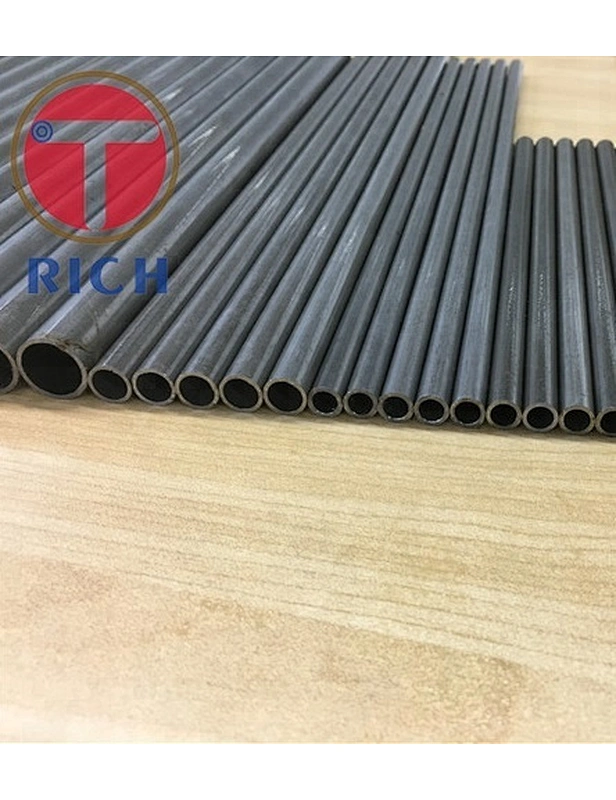

SAE J526 UNS G10080 / UNS G10100 Cold Drawn Welded Low Carbon Steel Tubing
SAE J526 welded single-wall low-carbon steel tubing intended for general automotive,refrigeration,hydraulic, and other similar applications requiring tubing of a quality suitable for bending,flaring,beading,forming,and brazing.

Technical Standard: SAE J526.
Wall thickness: 0.5-15mm
Diameter: 1-100mm
Length: Max 12000mm, Upon customer request
Application :General automotive,refrigeration,hydraulic, and other similar applications
Material / Grade: UNS G10080 or UNS G10100

Produce method:

The tubing shall be made from a single strip of steel shaped into a tubular form,the edges of which are joined and sealed by a suitable welding process.After welding,the bead shall be removed from the outside to provide a smooth round surface and the tubing shall be processed in such a manner as to produce a finished product which meet all requirements of this document.Typically this type of tubing is available in both coiled and straight condition.Straightness requirements should be agreed upon between supplier and purchasing

Steel Grade and Chemical Compositions
Steel Grade	C	Si	Mn	P	S
Steel Grade	max	max	max	max	max
UNS G10080	0.1	0.07-0.6	0.30-0.50	0.03	0.05
UNS G10100	0.08-0.13	0.07-0.6	0.30-0.60	0.03	0.05

MECHANICAL REQUIREMENTS
Properties	Values
Yield Strength, min (0.2% offset)	170 MPa
Tensile Strength, min	290 MPa
Elongation in 50 mm	14% min
Hardness (Rockwell 30 T scale), max	65

TUBING DIMENSIONS AND TOLERANCES
Dash Size	Nominal Tubing OD mm	Outside Diameter (2) Basic mm	Outside Diameter (2) Tolerance ±mm	Wall Thickness (3)(4) basic mm	Wall Thickness (3) Tolerance ±mm
−2	3.18	3.18	0.05	0.64	0.13
−3	4.76	4.76	0.08	0.71	0.13
−4	6.35	6.35	0.08	0.71	0.08
−5	7.94	7.92	0.08	0.71	0.08
−6	9.53	9.53	0.08	0.71	0.08
−7	11.11	11.13	0.10	0.76	0.08
−8	12.70	12.70	0.10	0.76	0.08
−8	12.70	12.70	0.10	0.89	0.09
−9	14.29	14.27	0.10	0.76	0.08
−10	15.88	15.88	0.10	0.89	0.09

1. Other sizes may be specified by agreement between the supplier and the user.
2. The actual outside diameter shall be the average of the maximum and minimum
outside diameters as determined at any one cross section through the tubing.
3. The tolerances listed represent the maximum permissible deviation at any point.
4. For intermediate wall thickness, the tolerance for the next heavier wall thickness
shall apply.

Tubing End Condition—

The tubing will be produced using normal mill cut-off practices. This will include, butis not limited to single-cut ends, double-cut ends, saw-cut, and rotary-cut ends. Care will be taken to minimizethe distortion of the tube ends. Ends that require further processing will be by agreement between theproducer and tube purchaser.

Surface Finish—

Surface imperfections such as handling marks, die marks, or shallow pits shall not beconsidered injurious defects provided such imperfections are not detrimental to the function of the tubing andthese imperfections are within the tolerances specified for diameter and wall thickness. The removal of suchsurface imperfections is not required. A slight weld bead and splatter on the inside surface shall bepermissible but must be held to the minimum consistent with good welding practice. Special weld beadrequirements must be agreed upon at time of purchase.

Relevant standard : SAE J1677-Tests and procedures of SAE Low-Carbon steel and Copper Nickel Tubing

Hardness Test—SAE J1677— 5.6
Bending Test—SAE J1677—5.3
Pressure Proof Test—SAE J1677—5.8
Nondestructive Electric Test—SAE J1677—5.9
Flattening Test—SAE J1677—5.1
Expansion Test—SAE J1677—5.4
Tensile Test—SAE J1677—5.7

SAE J409-Product Analysis –Premissible Variations from Specified Chemical Analysis of a Heat or Cast of steel

our certificate ISO PIC_20161202_144637_43C PIC_20161202_144653_0A7

PACKING DETAILS : In bundles or in wooden boxes packaging
