USD900.00 - USD2000.00
- Place of Origin:CN;ZHE
- Model Number:SAE1010
- Brand Name:TORICH
- Application:Industry
- Thickness:5-10mm
- Outer Diameter:50-100mm
- Welding Line Type:Seamless
- Certification:ISO
- Type:Seamless
- Standard:ASTM
- Steel Grade:SAE1010 SAE1020
- Product name:Honed Tubing
- Shape:Round
- Technique:Cold Drawing
SAE1010 SAE1020 Special Seamless Steel Inside Hexagonal Steel Pipe

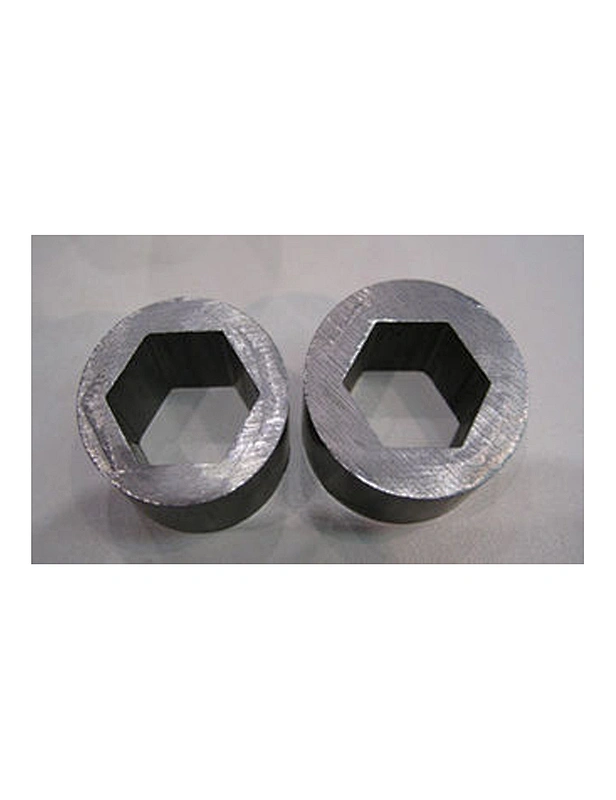

Inside Hexagonal Seamless Steel Pipes
Specifications

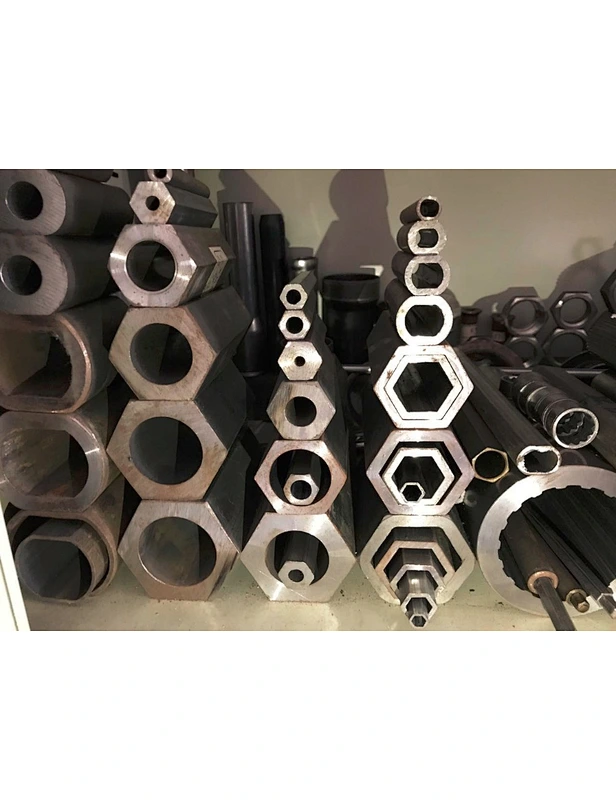

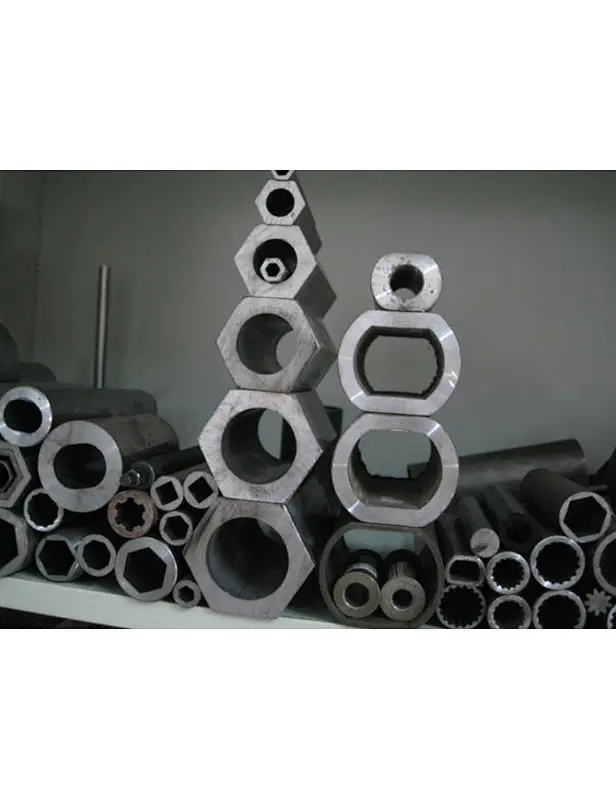

Special shapes of seamless steel tubes according to customers' drawings or detail requirement
Outside hexagonal steel tubes, intside round steel tubes
Outside Hexagonal Inside Round Seamless Steel Tubes
Ellipse oval steel tubes

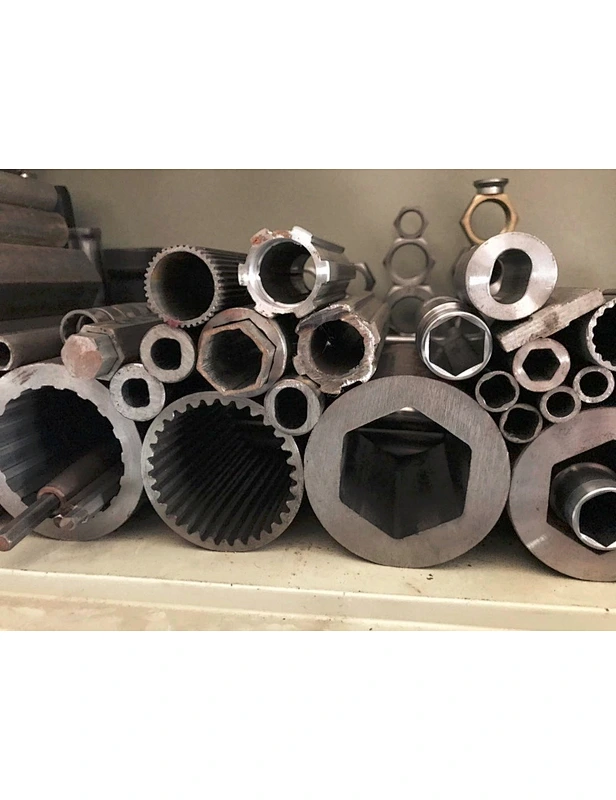

Special shapes seamless steel tubes
Rectangle steel tubes
Application:
For Agriculture motor applications, for Agricultural Machines,for motorcycles, for guns pipe, for machine engineering etc.
Steel Grade:
SAE1010, SAE1020, SAE1035, SAE1045,
ST37.0, ST44, ST52,
E235, E355, etc
Tolerance is
Inside diameter ,d
d≤4mm:±0.05mm for class2 (for diesel (compression-ignition)engines)
±0.025mm for class 1(for fuel injection pump testing)
d＞4mm:±0.10mm
Outside diameter,D
D＜8mm:±0.06mm
D≥8mm: ±0.10mm
For Class 1 and Class2 Please refer above explain.
The maximum value of the concentricity of the tube outside diameter relative to inside diameter shall be proportional to the wall thickness, as shown in Figure1.
High quality
Standard:ISO9001-2008
Number:02112Q119491R2M
Issue Date:2012-12-12
Expiry Date:2015-12-11
Scope/Range:Manufacture and After-Sales Service of Seamless Steel Tube
Issued By:IAF
High quality
Standard:ISO14001-2008
Number:02112E10591R2M
Issue Date:2012-12-12
Expiry Date:2015-12-11
Scope/Range:Manufacture and Related Management Activities of Seamless Steel Tube
Issued By:IAF
High quality
Standard:TS16949
Number:0200393
Issue Date:2015-01-07
Expiry Date:2018-01-06
Scope/Range:Cold Drawn Seamless Steel Tubes
Issued By:IATF
ISO9001
ISO14001
TS16949
QUALITY CONTROL
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking.
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
Impact Testing
Tensile Strength Testing
Chemical Composition Testing
Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Lab
Our Lab
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Packing Details : In bundles or in wooden boxes packaging
Delivery Details : 30-60days
