TORICH ANSI A213M-2001 9 Inch Carbon S105 Steel Drill Pipe Sch 10
price

USD4.00 - USD4.00

FOB
100 tons
500.0tons / Month
SHANGHAI / NINGBO
Quantity
  • Secondary Or Not:Non-secondary
  • Yield Strength of steel pipe tube::≥414 (MPa)
  • Tensile Strength of steel pipe tube::≥483 (MPa)
  • Length of steel pipe tube::Customers' request
  • Tolerance of steel pipe tube::+/-0.03mm
  • Type:SMLS
  • Ends:Cutting Etc
  • Color:Black....as Customers' Requirement
  • Key words:Drill Pipe Fluid Pipe
  • MOQ:1 Ton
  • Standard:ASTM
  • Standard2:ASTM A213M-2001
  • Grade Group:10#-45#
  • Grade:10#
  • Grade:45#
  • Grade Group:16Mn
  • Grade:16Mn
  • Section Shape:Round
  • Application:Drill Pipe, Fluid Pipe
  • Technique:Cold Drawn
  • Certification:ISO
  • Surface Treatment:Polishing, Galvanized
  • Special Pipe:Thick Wall Pipe
  • Alloy Or Not:Non-alloy
  • Tolerance:±5%
  • Type:Seamless Steel Pipe
  • Processing Service:Bending
  • Processing Service:Welding
  • Processing Service:Decoiling
  • Processing Service:Punching
  • Processing Service:Cutting
  • Place of Origin:CN;ZHE
  • Thickness:0.5 - 8 mm
  • Outer Diameter(Round):3 - 80 mm
Product Description

SAE 1020 Carbon Steel Seamless

Standard: ANSI A213M-2001

Grade Group: 10#-45#, 16Mn, A53-A369

Thickness: 0.5 - 8 mm

Outer Diameter(Round): 3 - 80 mm
Technique: Cold Drawn

End Shape: Beveled end, plain end, vanished, or adding plastic caps to protect the two ends as per customer's requirements

Surface: Oiled, Galvanized, Phosphate etc


Applications:


 1. Automotive and mechanical pipes

2. Petroleum cracking pipes

3. High Pressure Boiler Pipe

4. Low and middle pressure fluid transportation pipeline

5. Chemical fertilizer equipment pipes

6. Heat exchanger pipes


Chemical Composition:

Chemical Composition(%)
Mechanical Property
C
Si
Mn
S
P
Cr
Ni
Cu
Yield Strength
Tensile Strength
0.18~0.23
0.15-0.35
0.30~0.60
≤0.050
≤0.040
≤0.25
≤0.25
≤0.25
( σs )
( σb )
≥414
(MPa)
≥483 (MPa)

Conditions


 BKW (+LC)After last heat treatment there is a light finishing pass (cold drawing)
 BKS (+SR)After the final cold forming process the tubes are stress relieve annealed.
 GBK (+A)  After the final cold forming process the tubes are annealed in a controlled atmosphere.
 NBK (+N)After the final cold forming process the tubes are annealed above the upper transformation point in acontrolled

                  atmosphere.


Package


1. Bundle Packing.

2. Plain end or vanished as per customer's request.

3. Wrapped in waterproof paper.

4. Sackcloth with several steel strips.

5. Pack in heavy tri-wall boxes.

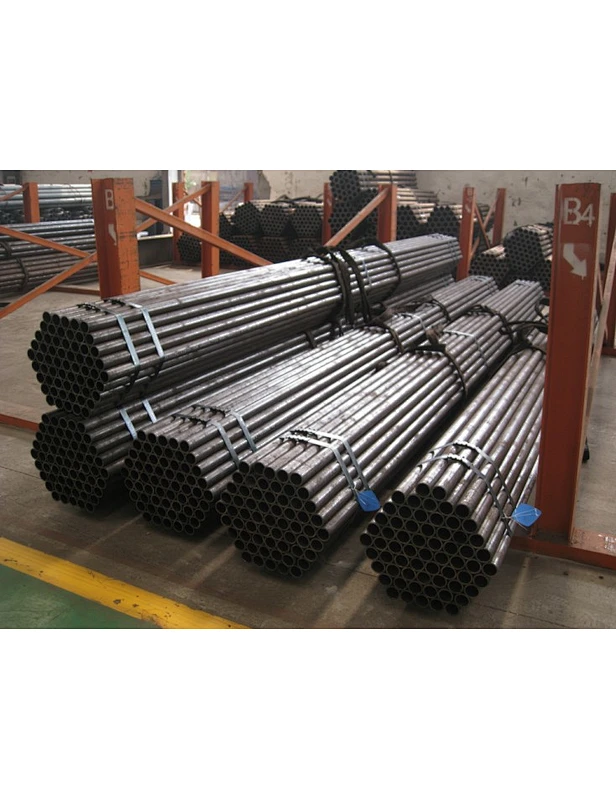

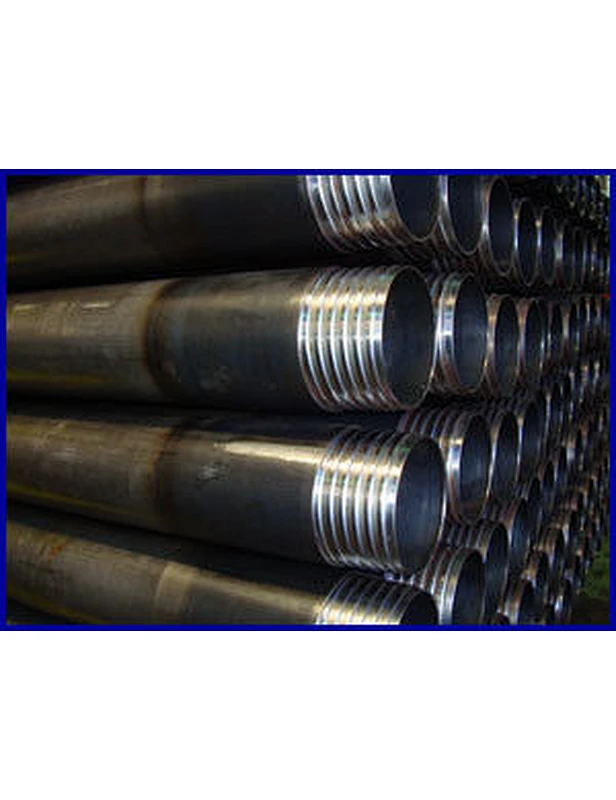

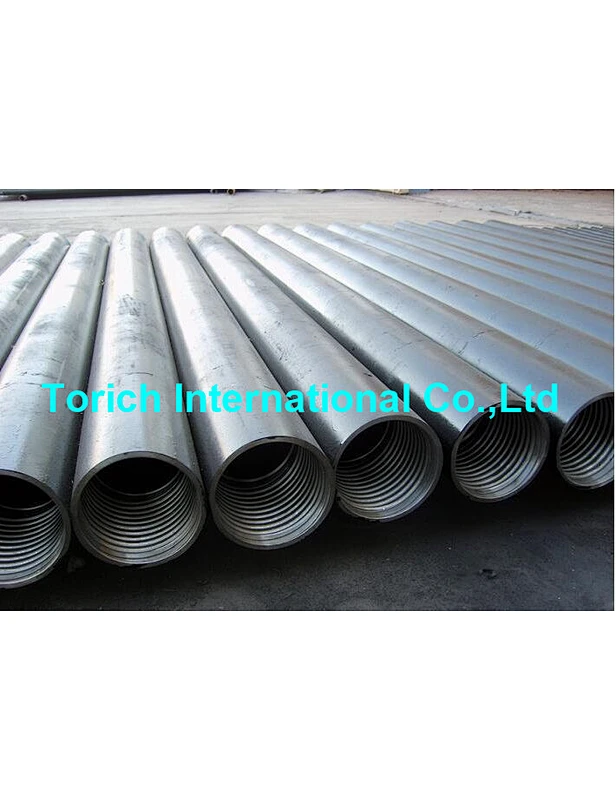

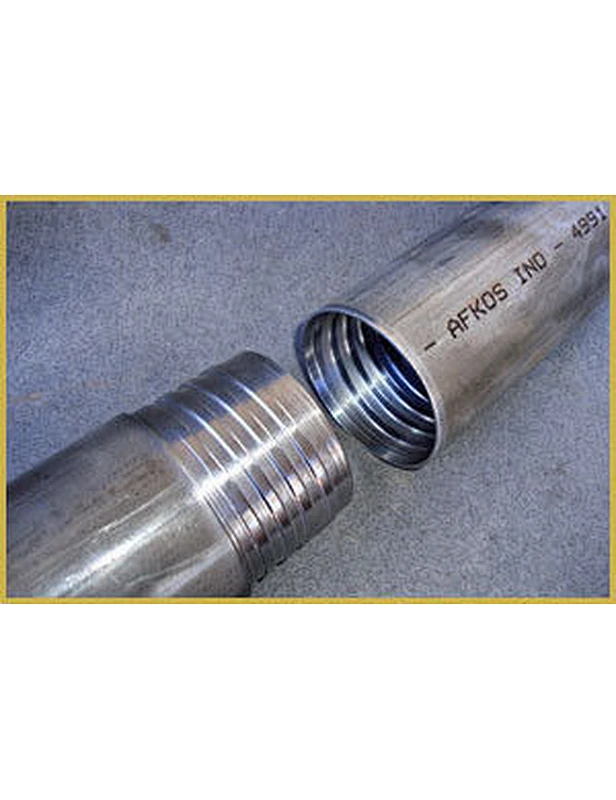

Detailed Images
About Us


Torich Interational Co.,Ltd is a professional manufacturer and exporter of steel pipes materials. It is an international marketing and sales company specialized in steel tubes, which holds the factories of Seamless Steel Tubes with Carbon and Alloy Steel Grade, Welded Precision Steel Tubes,DOM Steel Tubes, Seamless & Welded Stainless Steel Tubes with Nickel and Alloy Steel Grade.


Our factory was established since 1997, with the name of Haiyan Sanxin Steel Pipe Co., Ltd. The factories` technicians are of great engineering experience in steel pipe industry for more than 20 years, which are in great command of production technology for Cold Drawing and Cold Rolling. So we have strong technician team and manufacturing capability.
