USD1000.00 - USD6000.00
- Standard:ASTM
- Standard2:ANSI A213M-2001
- Grade Group:A53-A369
- Grade:A213
- Section Shape:Round
- Place of Origin:CN;ZHE
- Application:Boiler Pipe
- Technique:Cold Drawn
- Tolerance:±10%
- Type:Seamless Steel Pipe
- Processing Service:Bending
- Processing Service:Welding
- Processing Service:Cutting
- Thickness:0.5 - 12 mm
- Outer Diameter(Round):6 - 127 mm
- Certification:ISO 9001 ISO14001 TS16949
- Surface Treatment:pickled
- Special Pipe:U bend Tube
- Product name:Stainless Steel U Tube
- Secondary Or Not:Non-secondary
- Keywords:U bend Tube
- Model No:ASTM A213
- Type:Seamless
- Terms Of Trade:FOB
- Brand:Torich
- Transportation:Ocean,Air
- Certificate:ISO
- End protector:Plain
TORICH ASTM A213 Cold Formed U Bend Hollow Seamless Stainless Steel Tube
TORICH ASTM A213 Cold Formed U Bend Hollow Seamless Stainless Steel Tube
OD:6-127mm
WT:0.5-12mm

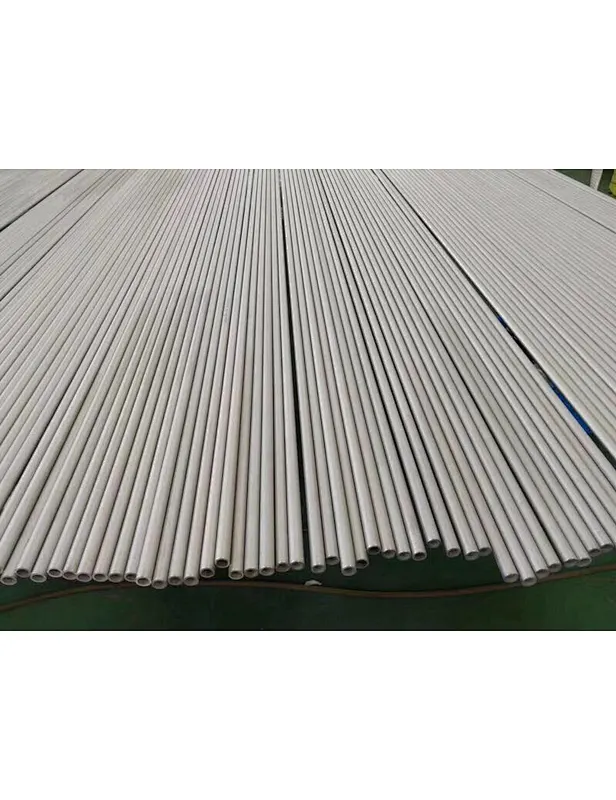

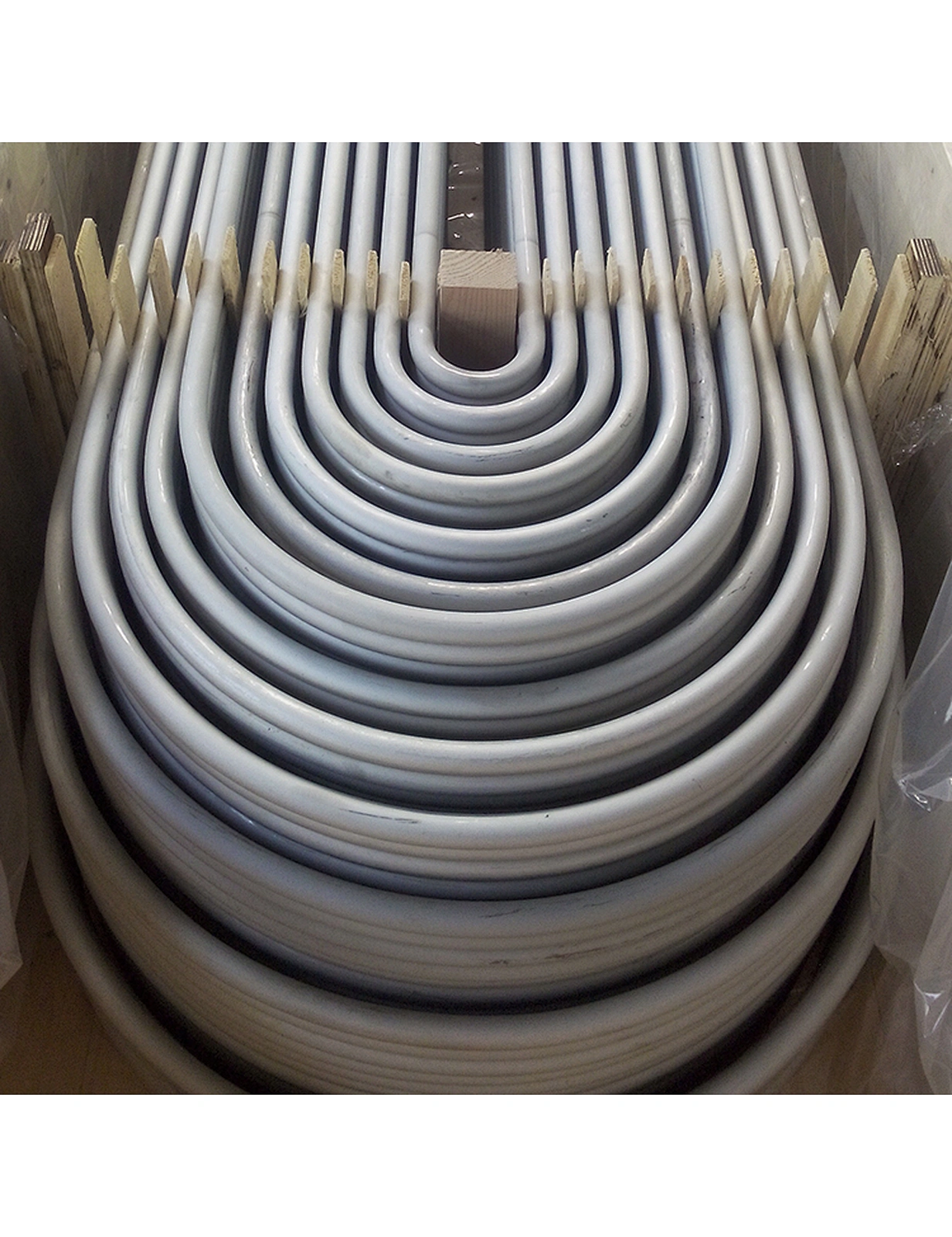

SA213 long steel tubes, make to U bend tubes for boilers and heat exchangers.

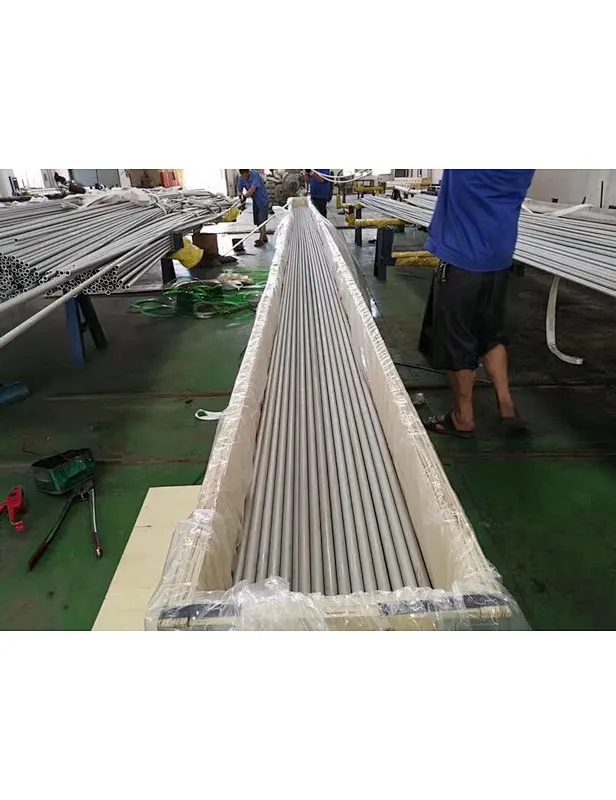

With strong wood structure box packing by containers loading and shipping.
Heater tubes U TUBES with Stainless, Alloy steel grade available, Carbon Steel grade is also available.
Chemical Composition
| C max | Mnmax | Simax | Smax | Pmax | Cr | Ni | Mo | Cumax | N |
| 0.03 | 1.2 | 0.8 | 0.02 | 0.035 | 24-26 | 6-8 | 3-5 | 0.5 | 0.24/0.32 |
Mechanical Properties
| Heat treatment | Tensile strength Mpa min | Yeild strenth Mpa min | A % min | Hardness HB | Hardness HR |
| 1025-1125 water quench | 800 | 550 | 15 | 310 | 32 |
1.4410 / 2507 / S32750 duplex Stainless Steel U bend Tube / U bendingPipe
QUALITY CONTROL
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample of 1.4410 / 2507 / S32750 duplex Stainless Steel U bend Tube / U bendingPipe for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
