USD900.00 - USD900.00
- Standard:ASTM
- Standard2:ASTM A513-2007
- Grade Group:10#-45#
- Grade:10#
- Grade Group:Q195-Q345
- Grade:Q235
- Grade:Q345
- Grade:Q195
- Grade:Q215
- Section Shape:Round
- Place of Origin:CN;ZHE
- Technique:Cold Drawn
- Alloy Or Not:Non-alloy
- Tolerance:±10%
- Processing Service:Bending
- Processing Service:Welding
- Processing Service:Decoiling
- Processing Service:Punching
- Processing Service:Cutting
- Thickness:1 - 15 mm
- Outer Diameter(Round):6 - 88.9 mm
- Type:DOM Steel Pipe
- Application:Automotive Tube
- Certification:ISO 9001 ISO14001 TS16949
- Surface Treatment:Oiled
- Special Pipe:SAE J525 DOM steel tubes
- Product name:ERW Automotive Steel Tube
- Secondary Or Not:Non-secondary
- Material:SAE J525 or SAE1010, SAE1020, SAE1026 etc.
- Shape:Round Shape
- End protector:Plain
- Usage:Automotive industry
- Type:Cold Drawing
- Length:1-12m
- Surface:None or oiled
- Certificate:ISO9001 TS16949

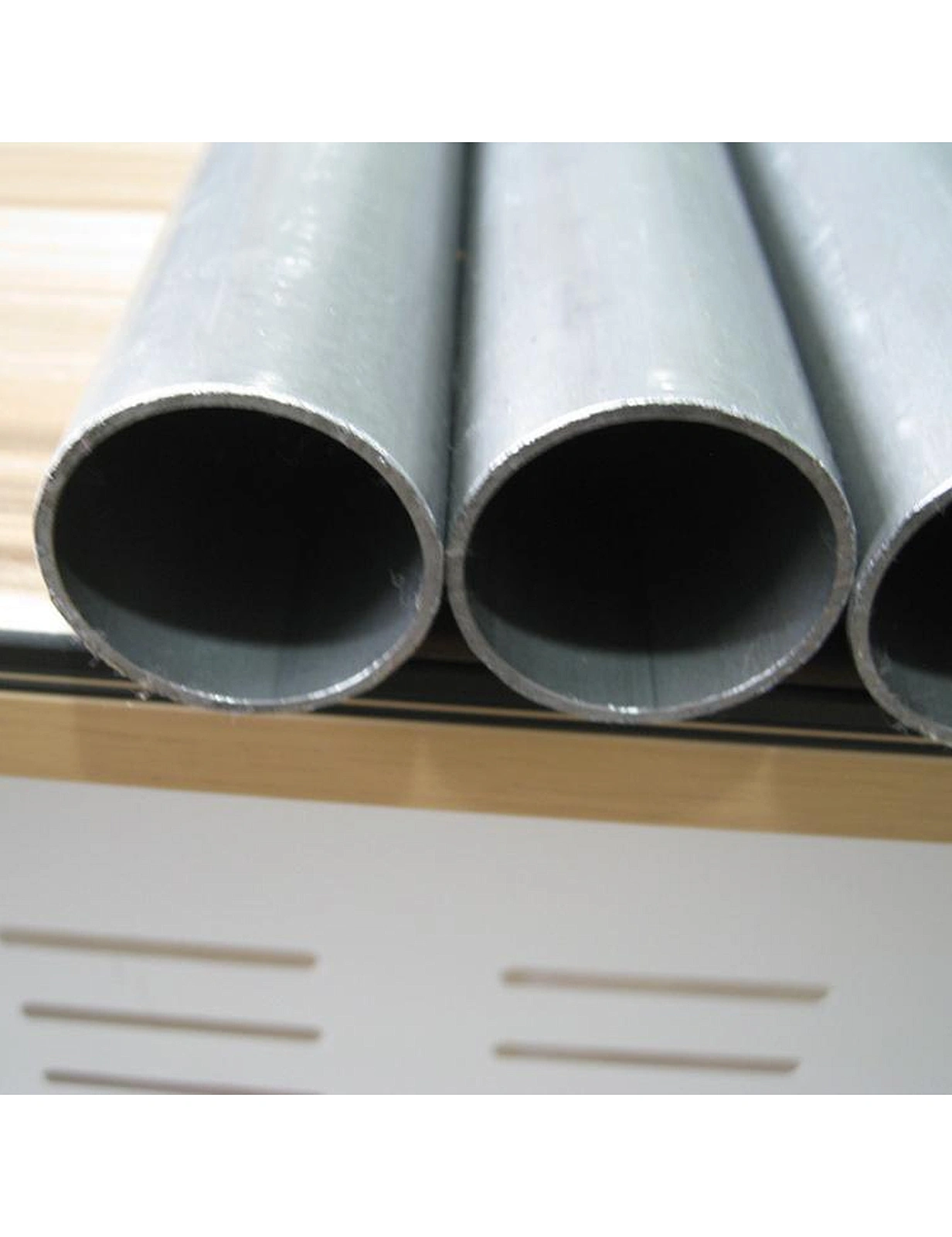

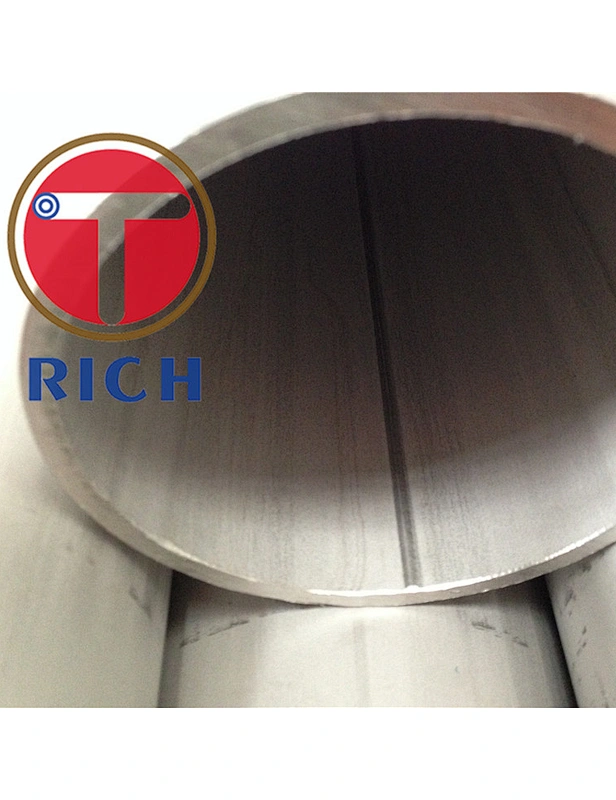

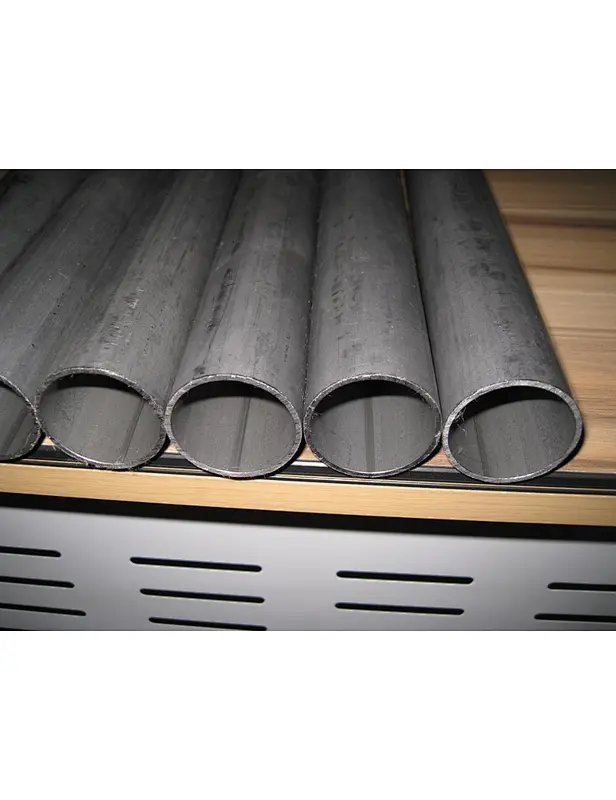

TORICH China Manufacturer Structural SAE J525 Automotive ERW / DOM Welded Steel Tube Tubes
SAE J525 Welded Cold Drawn Low Carbon Steel Tubing Annealed for Bending and Flaring
Electrical resistance welded hollow tubing
Description:
Mechanical tubing made from hot or cold-rolled steel.
Covers electric-resistance-welded low carbon steel tubing for use as mechanical tubing
Detail Info:
Size range: O.D.:6-88.9mm W.T.:1-15mm L: According to customer Order
Material: SAE1010, SAE1020, SAE1026 etc.
Production: ERW + DOM
Applications: for Bending and Flaring to auto parts
Advantage:
Good concentricity, Better price than seamless.
Good source of raw material from Bao Steel.
The tolerances applicable to the tubing outside diameter and inside diameter
TUBING OUTSIDE DIAMETER TOLERANCE | ||||
Nominal Tubing OD mm | Tolerance OD ±mm | Tolerance ID ±mm | ||
Up to 9.50 | 0.05 | 0.05 | ||
Over 9.50 to 15.88 inclusive | 0.06 | 0.06 | ||
Over 15.88 to 50.80 inclusive | 0.08 | 0.08 | ||
Over 50.8 to 63.50 inclusive | 0.10 | 0.10 | ||
Over 63.50 to 76.20 inclusive | 0.13 | 0.13 | ||
Over 76.20 to 100.00 inclusive | 0.15 | 0.15 | ||
WT tolerance shall be not more than 10% | ||||
TUBING WALL THICKNESS TOLERANCE | ||||||
Nominal Wall Thickness | Nominal OD Through 22mm ±mm | Nominal OD 22-48mm ±mm | Nominal OD 48-100mm ±mm | |||
0.89 | 0.05/0.05 | 0.05/0.05 | 0.05/0.05 | |||
1.00 | 0.05/0.08 | 0.05/0.08 | 0.05/0.08 | |||
1.25 | 0.05/0.08 | 0.05/0.08 | 0.05/0.08 | |||
1.50 | 0.05/0.08 | 0.05/0.08 | 0.05/0.08 | |||
1.65 | 0.05/0.08 | 0.05/0.08 | 0.05/0.08 | |||
2.00 | 0.05/0.08 | 0.05/0.08 | 0.05/0.08 | |||
2.11 | 0.05/0.08 | 0.05/0.08 | 0.05/0.08 | |||
2.41 | 0.05/0.08 | 0.05/0.08 | 0.05/0.08 | |||
2.50 | 0.05/0.08 | 0.05/0.10 | 0.08/0.08 | |||
2.77 | 0.05/0.08 | 0.05/0.10 | 0.08/0.08 | |||
3.00 | 0.05/0.08 | 0.05/0.10 | 0.08/0.08 | |||
3.05 | 0.05/0.08 | 0.05/0.10 | 0.08/0.08 | |||
3.40 | - | 0.05/0.10 | 0.08/0.08 | |||
3.75 | - | 0.05/0.10 | 0.08/0.08 | |||
4.00 | - | 0.08/0.10 | 0.08/0.10 | |||
4.19 | - | 0.08/0.10 | 0.08/0.10 | |||

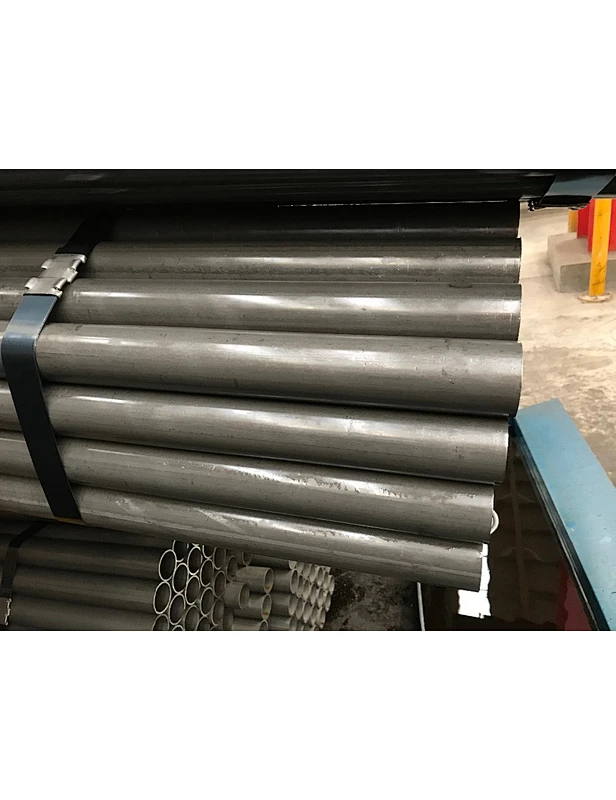

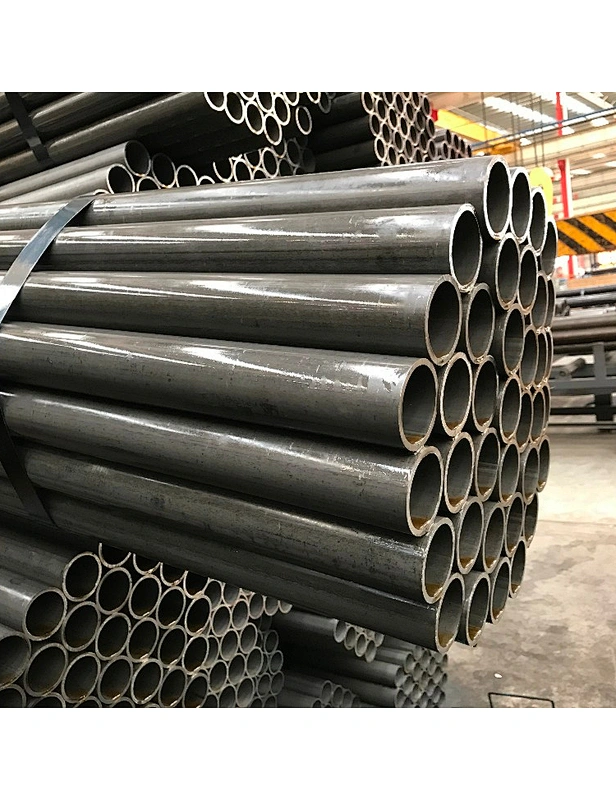

ERW / DOM Welded Steel Tube SAE J525 Low Carbon Automotive Tubes Packing Details :
In bundles or in wooden boxes packaging
Delivery Details : 30-60days
In hexagonal bundles packaging with woven
In wooden boxes.
In poywooden packaging,It cut the packaging costs also it can protect tubes well
In bundles with end caps.well protect tubes from rust.
Carton Packing suit for the cutting length
ISO9001
ISO14001
TS16949
QUALITY CONTROL
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking.
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
Impact Testing
Tensile Strength Testing
Chemical Composition Testing
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample of ERW / DOM Welded Steel Tube SAE J525 Low Carbon Automotive Tubes for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
