USD1000.00 - USD1500.00
- Standard:DIN
- Standard2:DIN EN 10305
- Section Shape:Round
- Place of Origin:CN
- Application:Hydraulic Pipe
- Technique:Cold Drawn
- Alloy Or Not:Non-alloy
- Tolerance:±3%
- Type:Welded Steel Pipe
- Processing Service:Cutting
- Thickness:0.5 - 50 mm
- Outer Diameter(Round):5 - 420 mm
- Certification:ISO901 ISO14001 TS16949
- Surface Treatment:Customized
- Special Pipe:Honed Tubes
- Product name:Manufacturer Structural Welded Precision Steel Tube EN10305-2
- Keyword:Structural Welded Precision Steel Tube EN10305-2
- Usage:for Precision Application
- Material:E215 E235 E275 E355
- Surface:NBK
- Type:Cold Drawn
- End protector:Plain
- OD:5-420mm
- WT:0.5-50mm
- Length:Max 12000mm

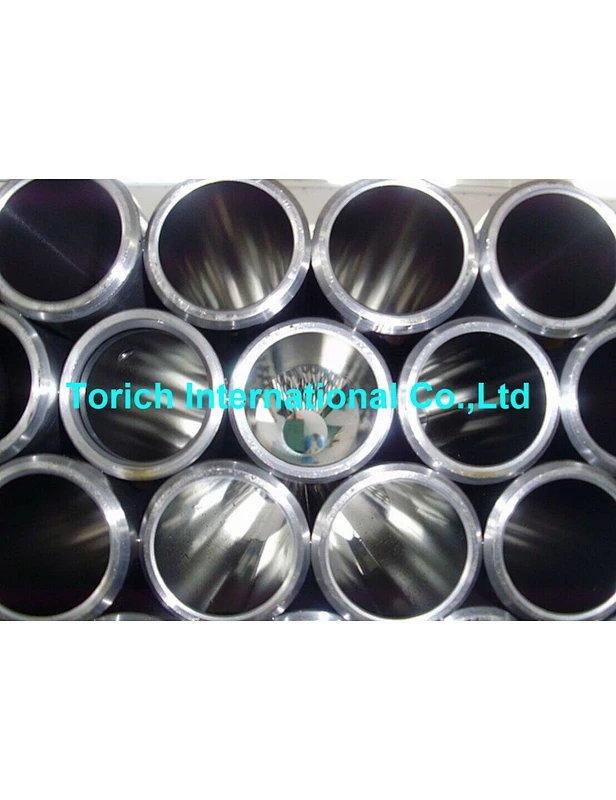

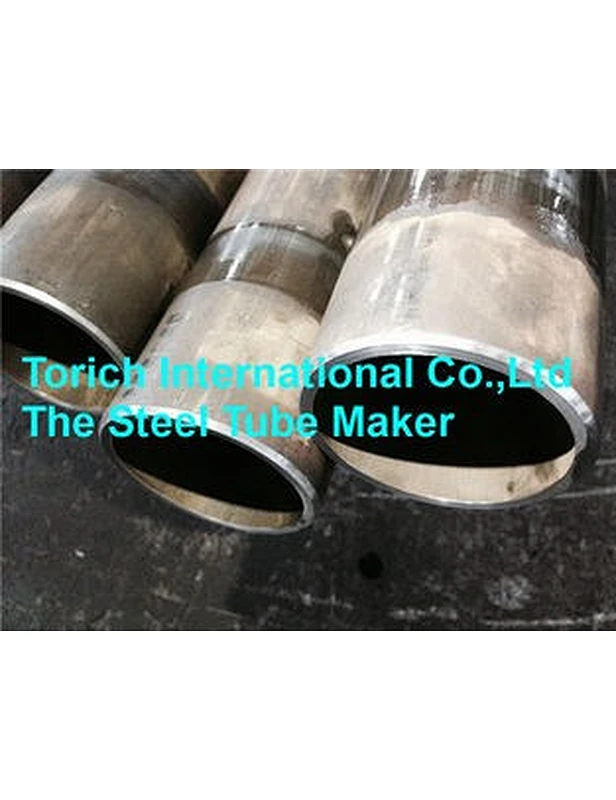

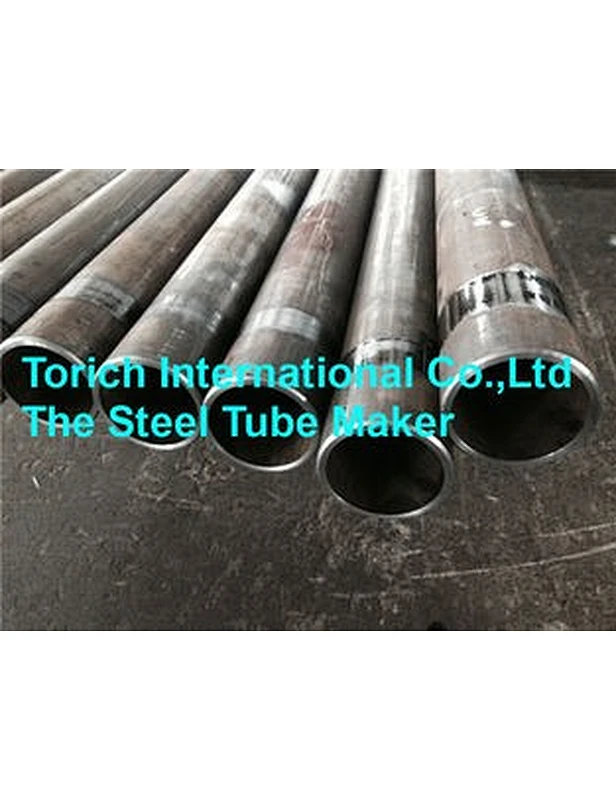

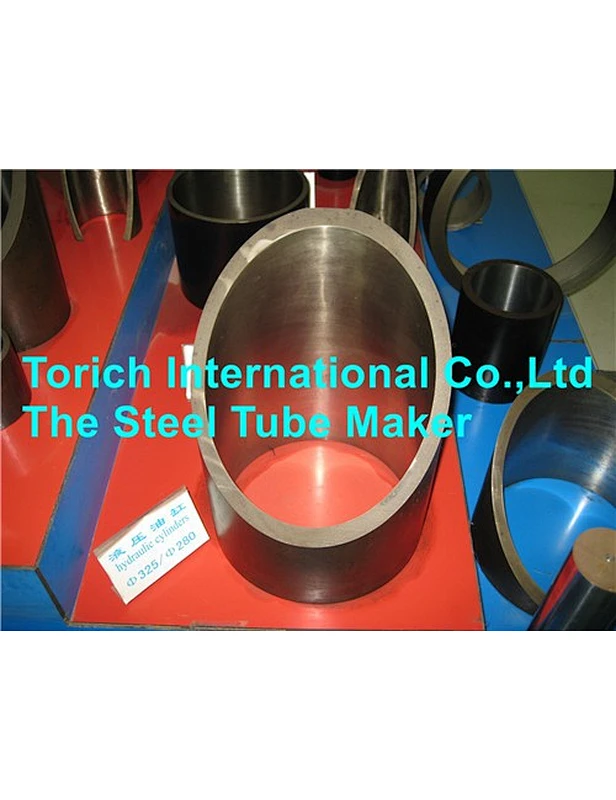

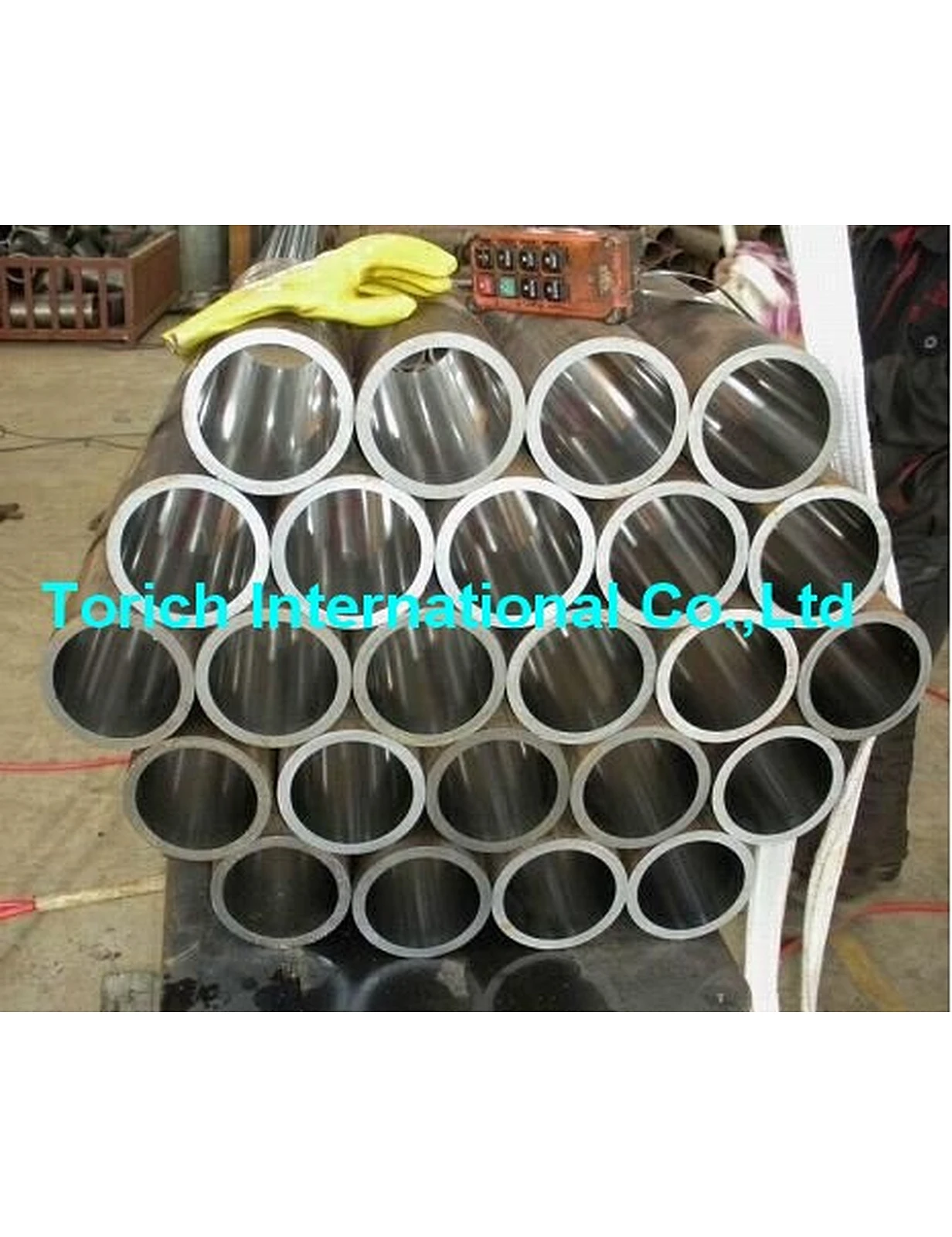

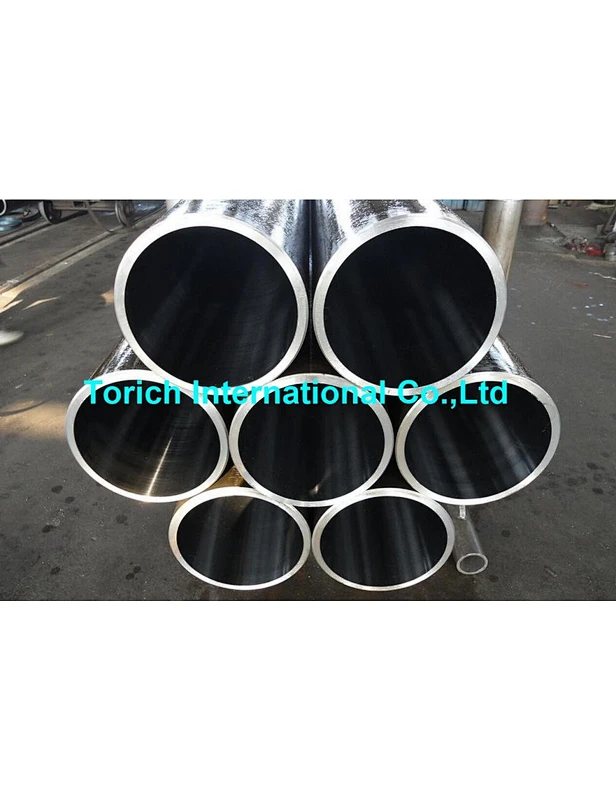

TORICH China Manufacturer Structural Welded Precision Steel Tube EN10305-2
TORICH China Manufacturer Structural Welded Precision Steel Tube EN10305-2
Applications:
for Auto industry
for machinery use
Oil Cylinder Tube
Motorcyle shock absorber
Auto shock absorber innder cylinder
Telescopic Cylinders
Size range:
ID.: 20-650mm W.T.:1-50mm L:max12000mm
Steel Grade:
E155, E195, E235, E275, E355. S45C
Steel Grade and Chemical Compositions
Steel Grade C Si Mn P S
Steel Name Steel Number max max max max max
E155 1.0033 0.11 0.35 0.70 0.025 0.025
E195 1.0034 0.15 0.35 0.70 0.025 0.025
E235 1.0308 0.17 0.35 1.20 0.025 0.025
E275 1.0225 0.21 0.35 1.40 0.025 0.025
E355 1.0580 0.22 0.35 1.60 0.025 0.025
Heat treatment method:
+Cc, +LCc, +SR, +Ad, +N
Note: Special steel grade is also available, according to customer request.
Please specify the steel grade and heat treatment mothod when sending the enquiry!
