USD900.00 - USD1200.00
- Place of Origin:CN;ZHE
- Alloy Or Not:Non-alloy
- Grade:10#
- Grade:20#
- Grade:45#
- Grade:A53(A,B)
- Thickness:1 - 35 mm
- Outer Diameter(Round):30 - 650 mm
- Secondary Or Not:Non-secondary
- Standard2:ASTM A513-2007
- Technique:Cold Drawn
- Grade Group:10#-45#
- Grade Group:A53-A369
- Standard:ASTM
- Section Shape:Round
- Surface Treatment:Bright
- Special Pipe:Honed Tubing
- Application:Hydraulic Cylinders
- Certification:ISO9001
- Product name:Welded Precision Cold Drawn Honed Tubing of Hydraulic Cylinder
- Keyword:Honed Tubing
- Material:EN10305-2
- Shape:Round
- Technique:Cold Drawn and Honing
- Surface:Ra max0.4μm
- Length:1-12m
- Packing:Max 1.5tons per bundle
- Usage:Hydraulic Cylinders
- Certificate:EN10204 3.1B EN10204 3.2B

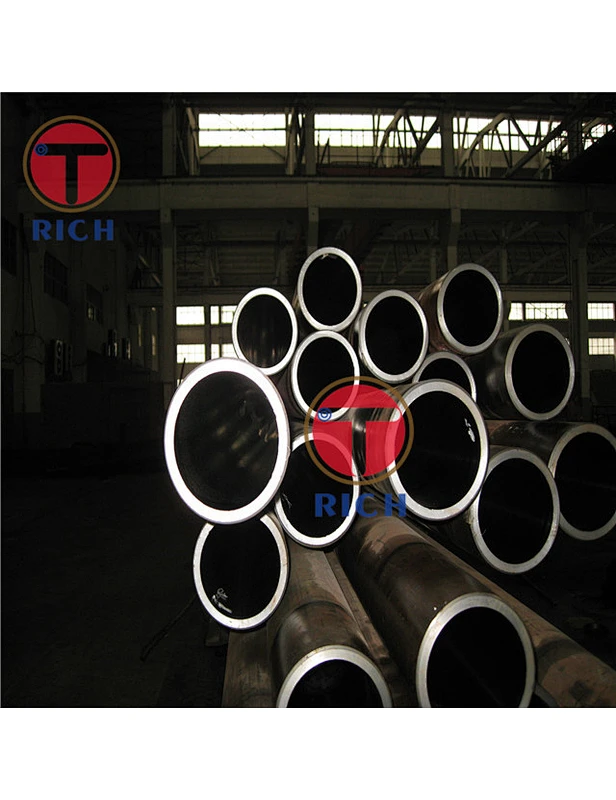

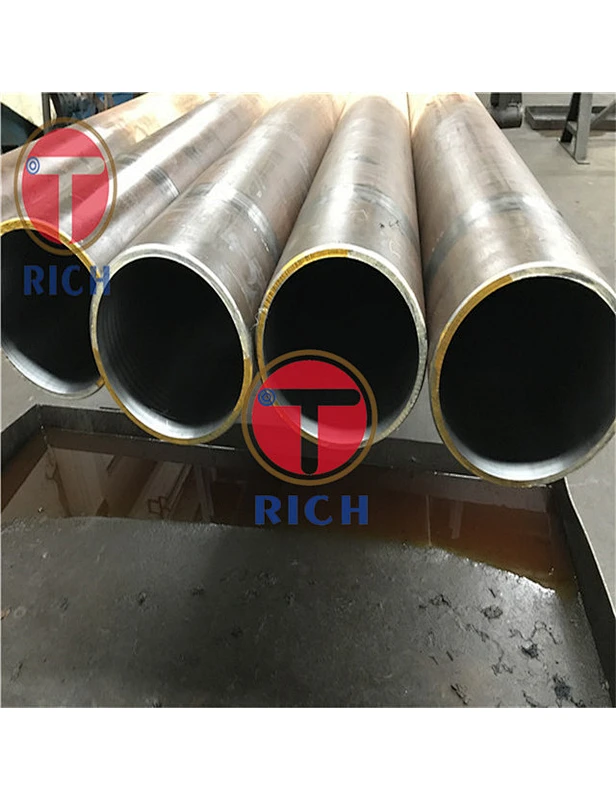

EN10305-2 E235 E355 Welded Precision Cold Drawn Honed Tubing for Hydraulic Cylinder
EN10305-2 DOM Hydraulic Cylinder Tube for Oil and Pnuematic Cylinders E155 E195 E235 E275 E355
EN10305-2 Welded Precision Cold Drawn Steel Tubes
Honing, Skiving, Roller Burnish
Applications:
for Auto industry
for machinery use
Oil Cylinder Tube
Motorcyle shock absorber
Auto shock absorber innder cylinder
Telescopic Cylinders
Size range: ID.: 20-450mm W.T.:1-80mm L:max12000mm
Steel Grade: E155, E195, E235, E275, E355. S45C

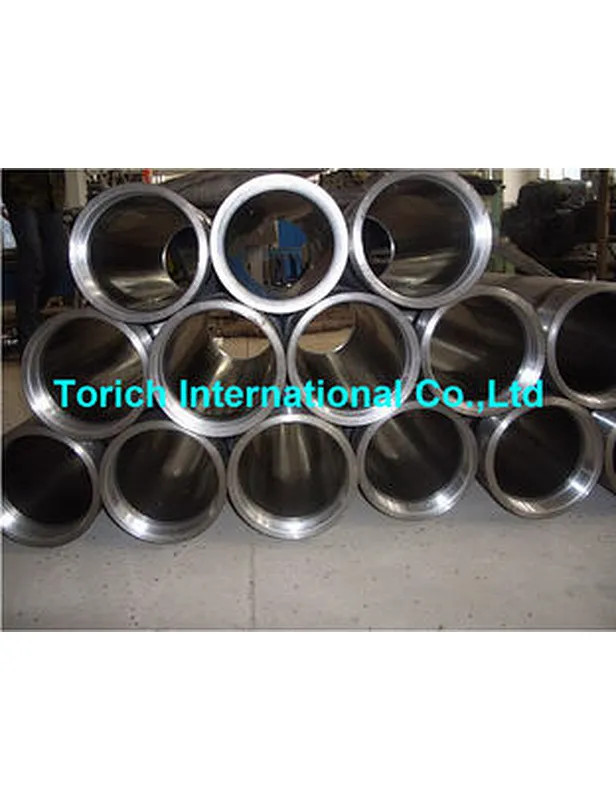

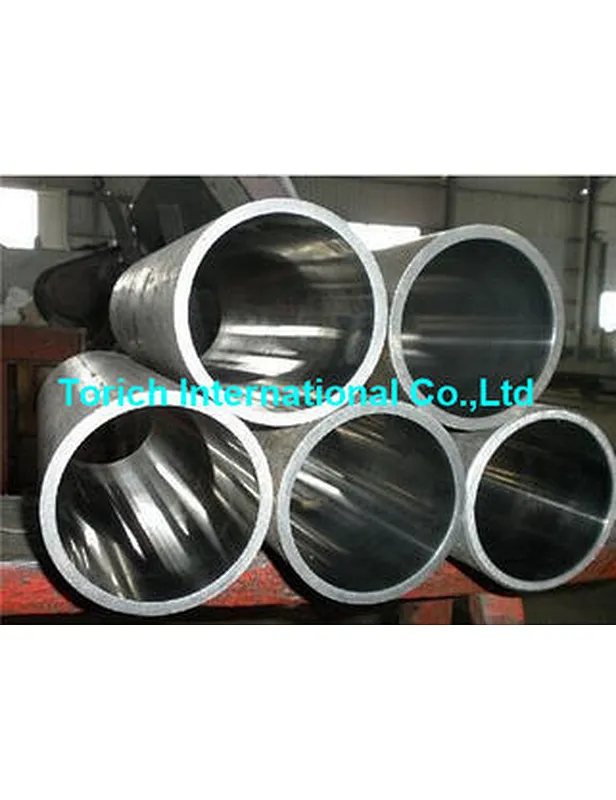

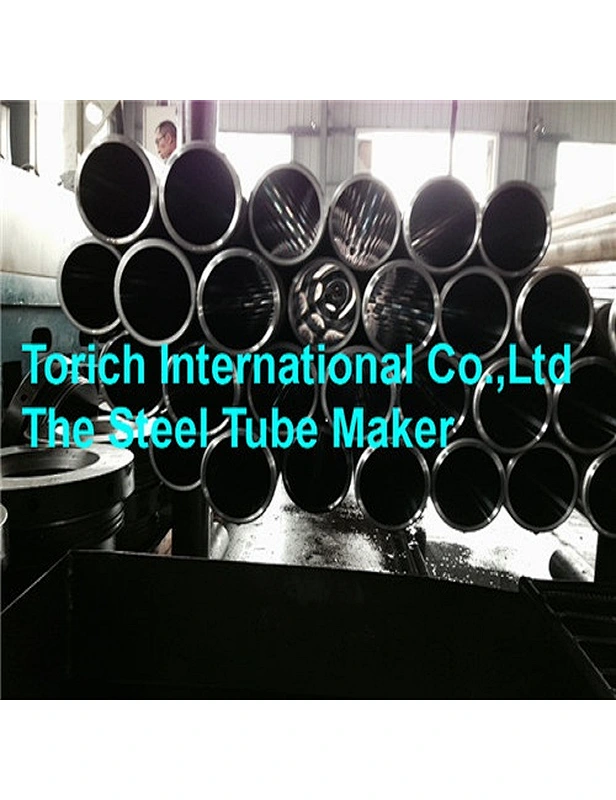

ID Honing
The honing process makes ：
1.Smooth surface finishes inside bores
2.Hold precise tolerances on bore diameters
ID H7 H8 H9
ID roughness 0.2-0.8μm
ID max 630mm
Roller Burnish+ Skiving
Two thin chips are cut at high feed rate while the tool passes through the workpiece.producing super finish surface,with a bore precise tolerance .
ID H7 H8 H9
ID roughness 0.2-0.8μm
ID max 630mm
ISO9001
ISO14001
TS16949
QUALITY CONTROL
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking.
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.
Impact Testing
Tensile Strength Testing
Chemical Composition Testing
Packing Details : In bundles or in wooden boxes packaging of honed tubing
Delivery Details : 30-60days

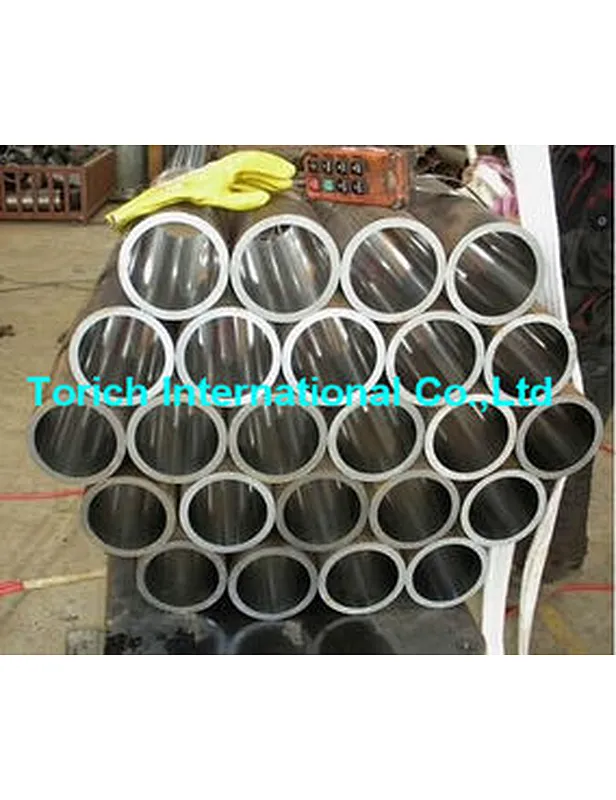

In hexagonal bundles packaging with woven
In wooden boxes.
Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Lab
Our Lab
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples of honed tubing ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
