USD1000.00 - USD2000.00
- Standard:DIN
- Standard2:DIN EN 10305
- Standard2:DIN 2391
- Grade Group:10#-45#
- Grade:10#
- Grade:20#
- Grade:45#
- Grade Group:ST35-ST52
- Grade:St37
- Grade:St52
- Grade:St37-2
- Grade:St35.4
- Grade:ST35
- Grade:ST37.4
- Section Shape:Round
- Place of Origin:CN;ZHE
- Application:Hydraulic Pipe
- Technique:Cold Drawn
- Special Pipe:Thick Wall Pipe
- Alloy Or Not:Non-alloy
- Tolerance:±3%
- Type:Seamless Steel Pipe
- Processing Service:Cutting
- Thickness:4 - 50 mm
- Outer Diameter(Round):16.5 - 350 mm
- Certification:ISO901 ISO14001 TS16949
- Surface Treatment:Customized
- Product name:EN10305 E213 E235 E355 Seamless Cold Formed Steel Hollow Tube
- Keyword:EN10305 Steel Tubes
- Usage:For Precision Application
- Material:E215 E235 E275 E355
- Surface:NBK
- Type:Cold Drawn
- End protector:Plain
- OD:16.5-350mm
- WT:4-50mm
- Length:Max 12000mm

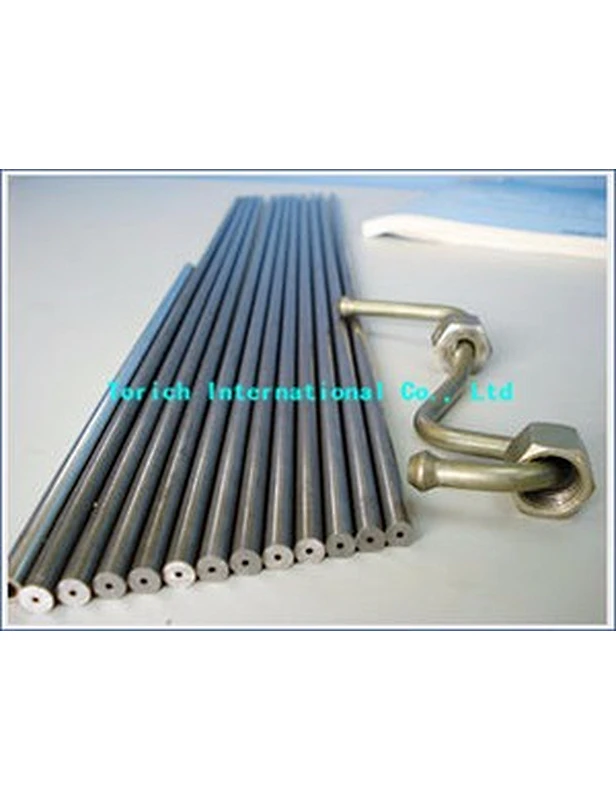

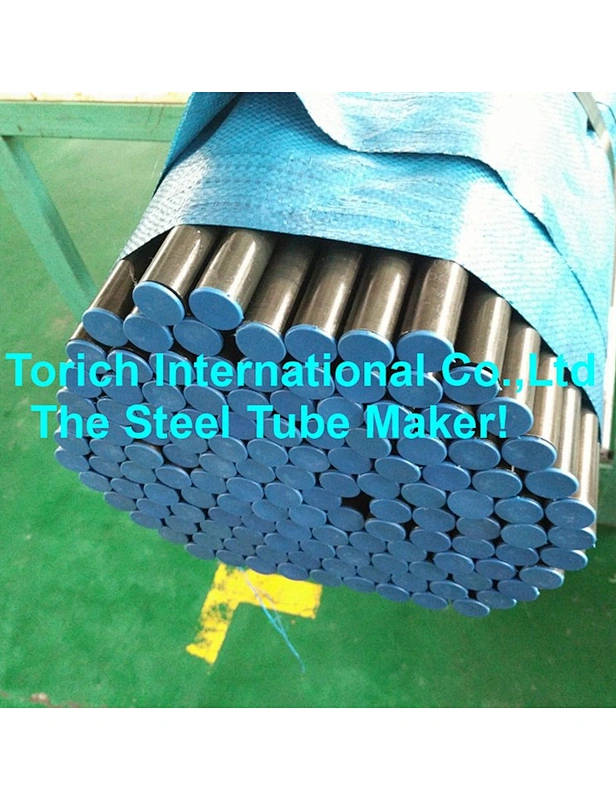

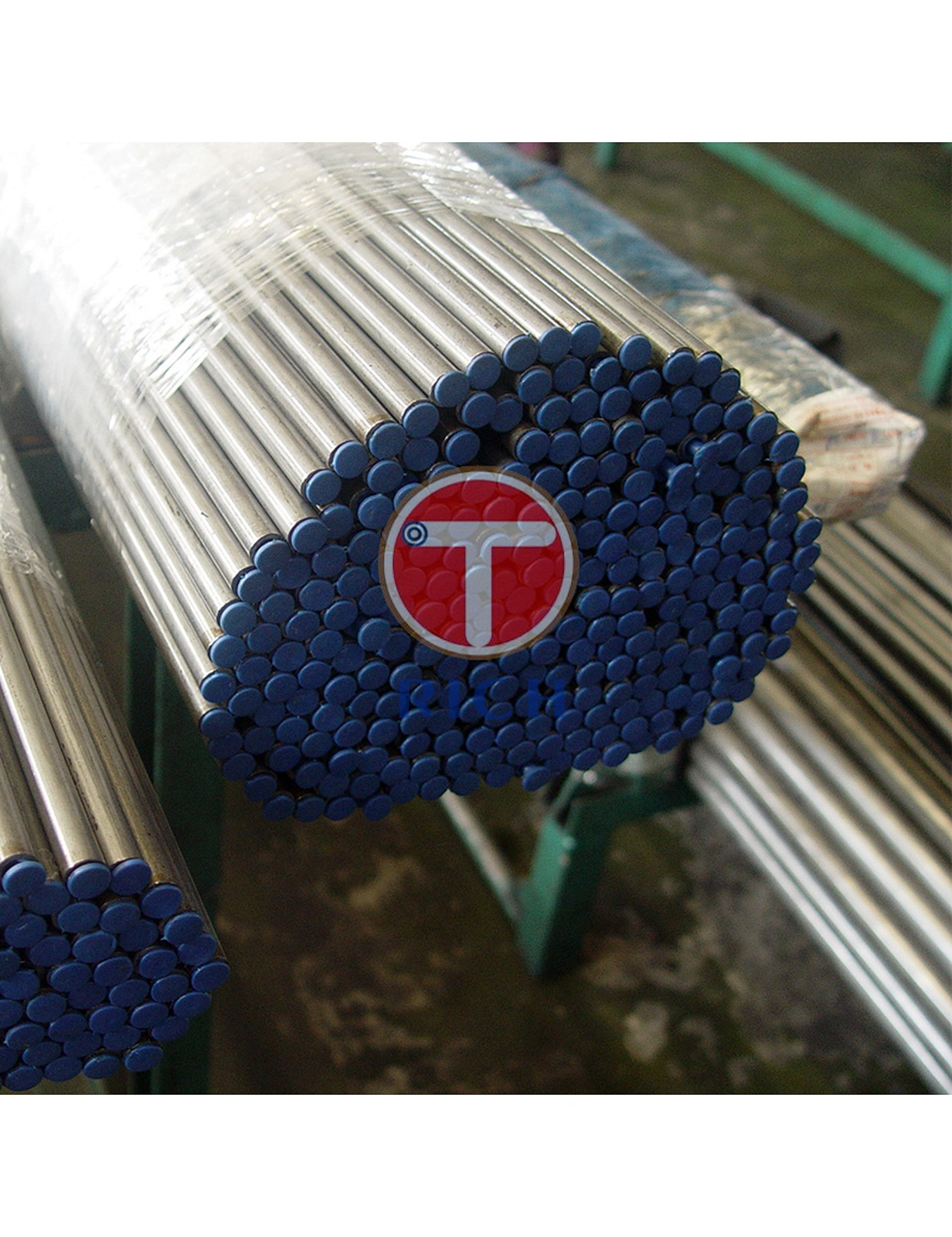

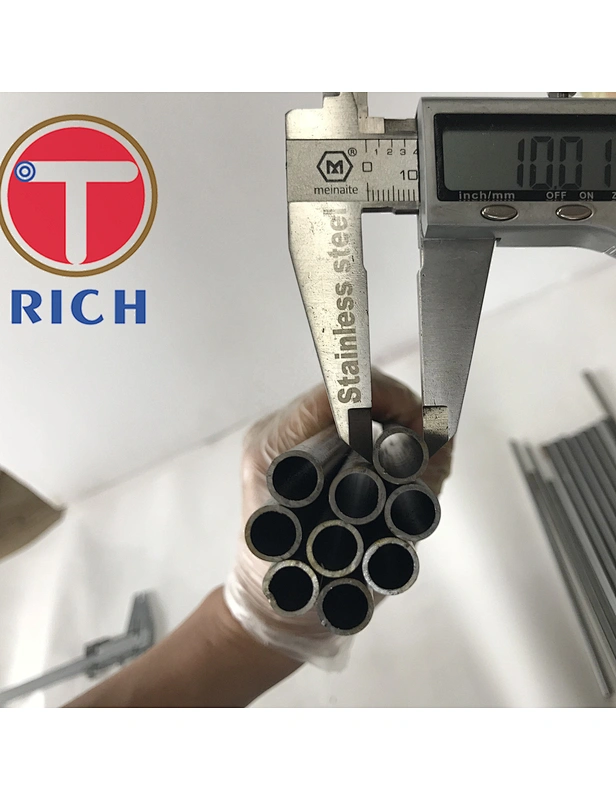

TORICH EN10305 E213 E235 E355 Seamless Cold Formed Steel Hollow Tube
Applications:
for Auto industry
for machinery use
Oil Cylinder Tube
Motorcyle shock absorber
Auto shock absorber innder cylinder
Telescopic Cylinders
Size range:
ID.: 16.5-350mm W.T.:4-50mm L:max12000mm
Steel Grade:
E155, E195, E235, E275, E355. S45C
Steel Grade and Chemical Compositions
Steel Grade C Si Mn P S
Steel Name Steel Number max max max max max
E155 1.0033 0.11 0.35 0.70 0.025 0.025
E195 1.0034 0.15 0.35 0.70 0.025 0.025
E235 1.0308 0.17 0.35 1.20 0.025 0.025
E275 1.0225 0.21 0.35 1.40 0.025 0.025
E355 1.0580 0.22 0.35 1.60 0.025 0.025
Heat treatment method:
+Cc, +LCc, +SR, +Ad, +N
Note: Special steel grade is also available, according to customer request.
Please specify the steel grade and heat treatment mothod when sending the enquiry!
Honed Tube also available
