USD1000.00 - USD1200.00
- Standard:ASTM
- Standard2:ASTM A179-1990
- Standard2:ASTM A213-2001
- Standard2:ANSI A213-2001
- Standard2:ASTM A335-2006
- Standard2:ASTM A199
- Grade Group:10#-45#
- Grade:10#
- Grade:20#
- Section Shape:Round
- Place of Origin:CN;ZHE
- Application:Boiler Pipe
- Technique:Cold Drawn
- Alloy Or Not:Non-alloy
- Tolerance:±10%
- Type:Seamless Steel Pipe
- Processing Service:Bending
- Processing Service:Punching
- Processing Service:Cutting
- Thickness:1 - 15 mm
- Outer Diameter(Round):10 - 50 mm
- Certification:ISO 9001:2008 , TS16949
- Surface Treatment:anti-rust oiled
- Special Pipe:Seamless Cold-Drawn Pipe
- Product Name:Seamless Cold Formed Hollow 58mm Steel Tube For Boiler
- Keyword:58mm steel tube
- Standard:SA179 SA192 SA213 SA335
- Material:10#.20#
- Usage:For Boilers/Heat Exchangers/Condensers
- Surface:anti-rust oiled
- Shape:Round Shape
- OD:3.2-76.2mm
- WT:1-15mm
- length:Max12000mm

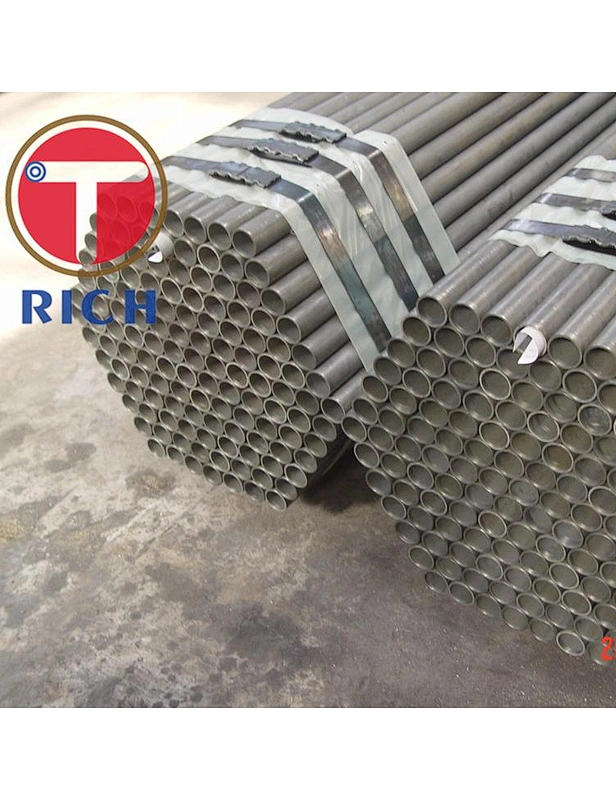

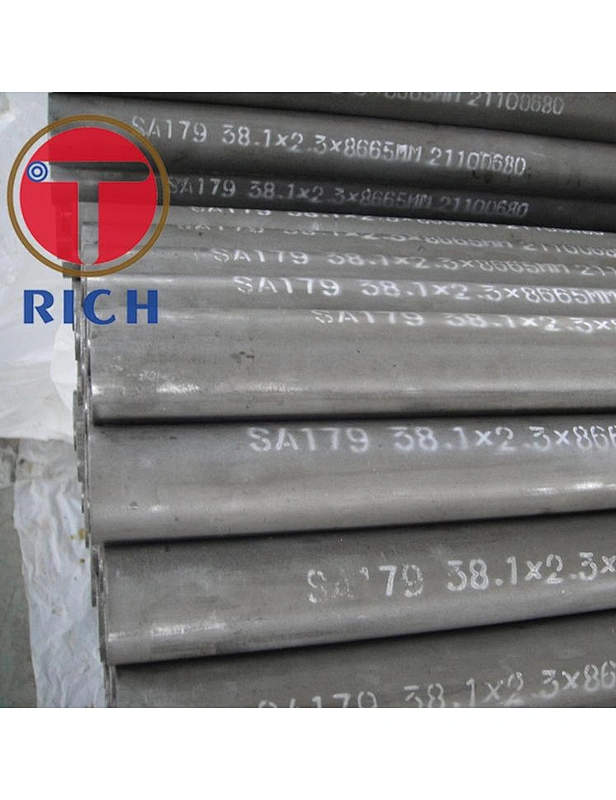

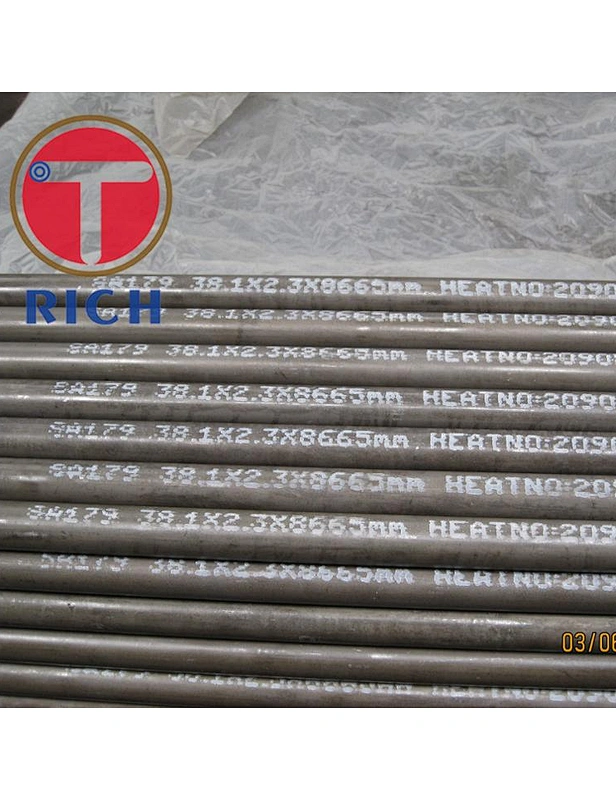

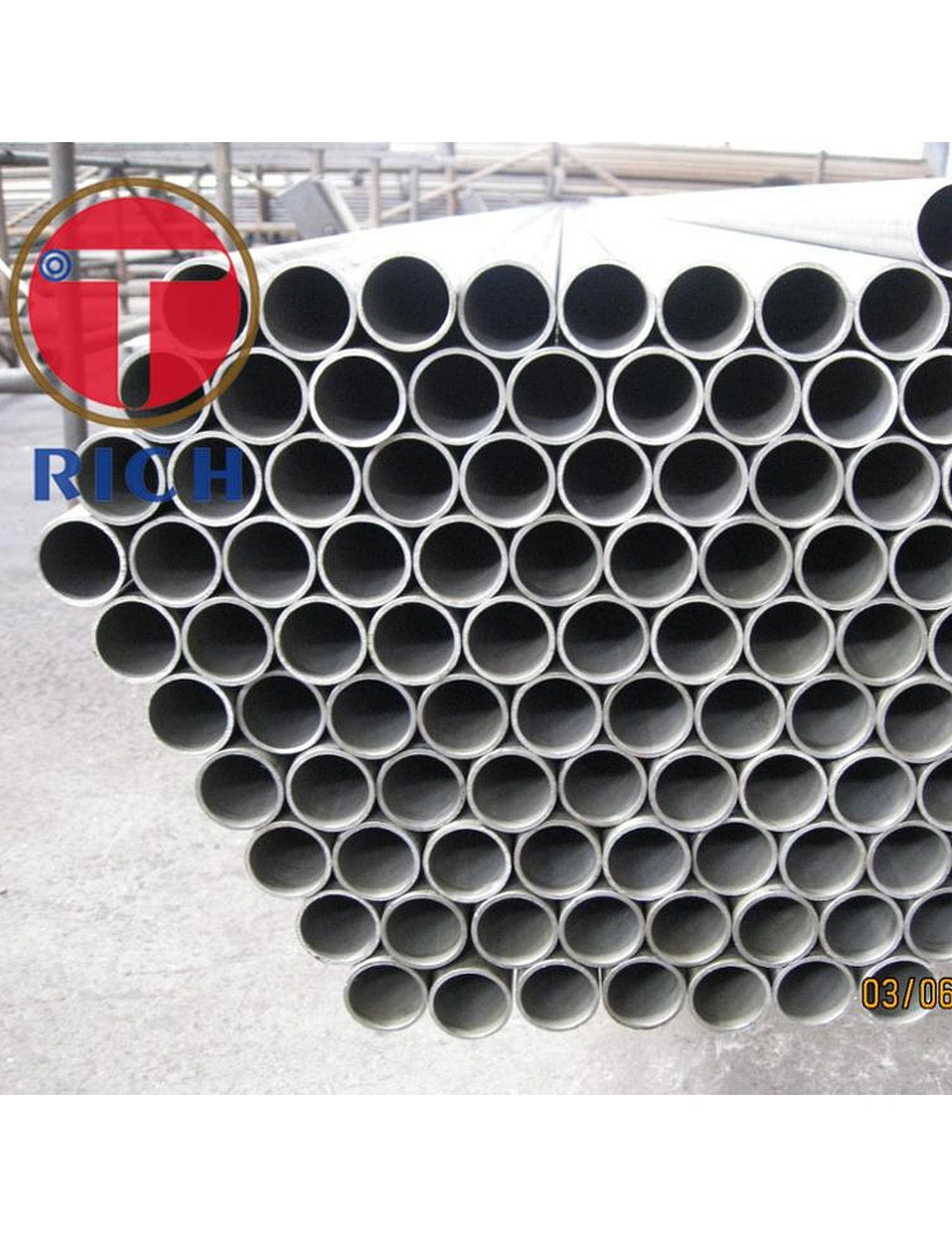

TORICH SA179 SA192 SA213 SA335 Seamless Cold Formed Hollow 58mm Steel Tube For Boiler
Applications:
- For Boilers,
- Superheaters,
- Tubular Heat-Exchangers,
- Condensers
- Heat transfer apparatus
U bend Tubes according to Customer request
Material: Low Carbon Steel
Production: Seamless Cold Drawn
Size range: O.D.:3.2-76.2mm W.T.:1-15mm L: according to customer requirement.
Steel Grade and Chemical Compositions:
| C | 0.06-0.18 |
| Mn | 0.27-0.63 |
| P | ≤0.035 |
| S | ≤0.035 |
Mechanical Properties
| Tensile Streghth | min ksi[Mpa] 47[325] |
| Yield Point | min ksi[Mpa] 26[180] |
| Elongation | ≥35% |
| Hardness | ≤72HRB |
Heat Treatment:
Tubes are heat treated after the final cold draw pass at a temperature of 1200℉(650℃) or higher
Surface Finish:
Finish Tubes are free of scale.
We have normal heat treatment annealing with black surface.
Have bright annealing with grey and bright surface.
Application
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
