- Standard:ASTM
- Standard2:ASTM A789-2001
- Standard2:ASTM A513-2007
- Standard2:ASME B36.19M-2004
- Standard:DIN
- Standard2:DIN EN 10217-1-2005
- Standard:GB
- Standard2:GB/T 3094-2000
- Grade Group:10#-45#
- Grade:10#
- Grade:20#
- Grade:45#
- Grade Group:16Mn
- Grade:16Mn
- Grade Group:Q195-Q345
- Grade:Q235
- Grade:Q345
- Grade:Q215
- Grade Group:ST35-ST52
- Grade:St37
- Grade:St52
- Grade:St42
- Grade:St35.8
- Grade:St37-2
- Grade:St35.4
- Grade:ST35
- Grade:ST37.4
- Place of Origin:CN;ZHE
- Technique:Cold Drawn
- Alloy Or Not:Non-alloy
- Application:For General Structural Purposes
- Certification:GB/T 19001-2008 , NK , TUV(PED) , KR , RINA
- Surface Treatment:Oiled
- Special Pipe:Special Shape/Profile Tube
- Thickness:1 - 24 mm
- Section Shape:Square , Rectangle
- Brand Name:Torich
- Standard:ASTM A500
- Model Number:Square Tube
- Dimension:20-20 To 500-500mm*1-24mm*12000mm
- Shape:Square. Rectangular
- Grade:Carbon Steel
- Type:Seamless
- Production:Cold Drawn
- Usage:For Construstion
- MTC:EN10204 3.1 B

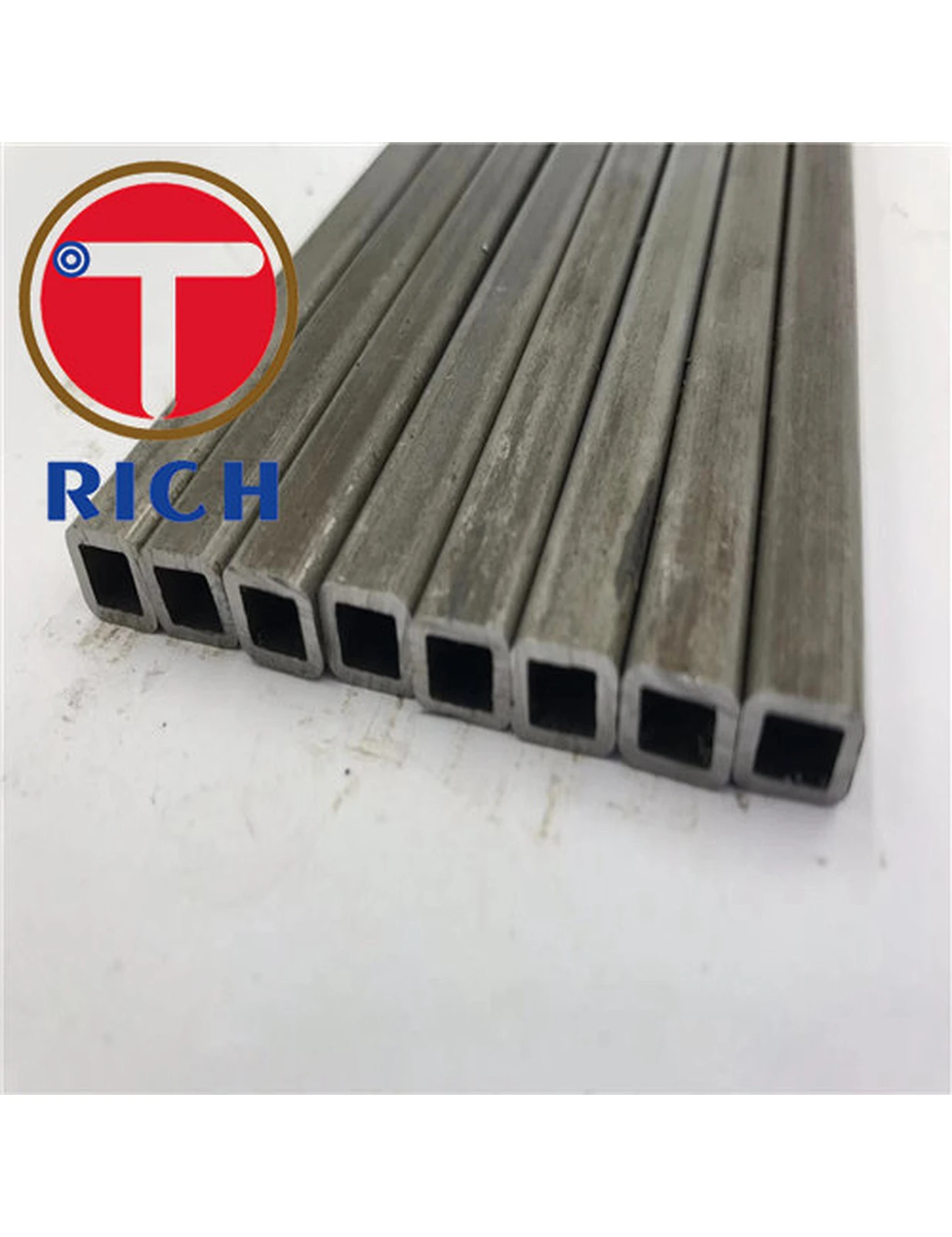

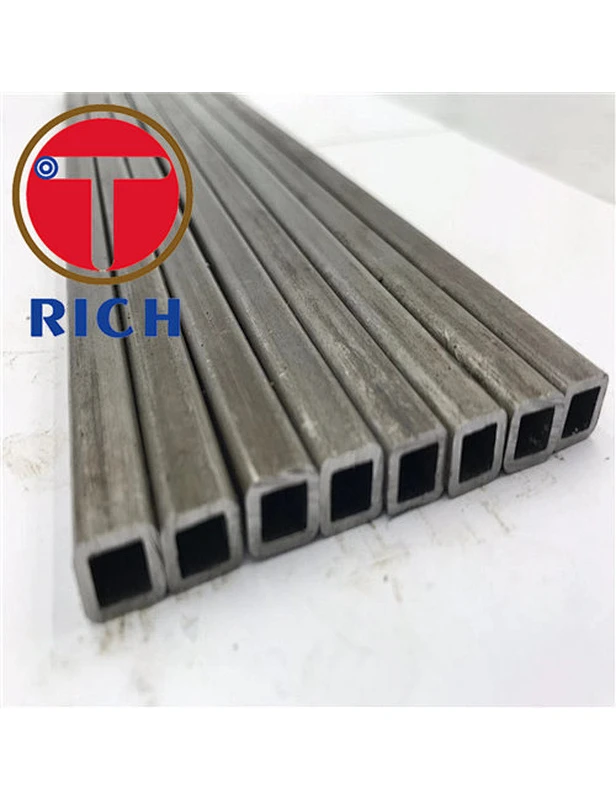

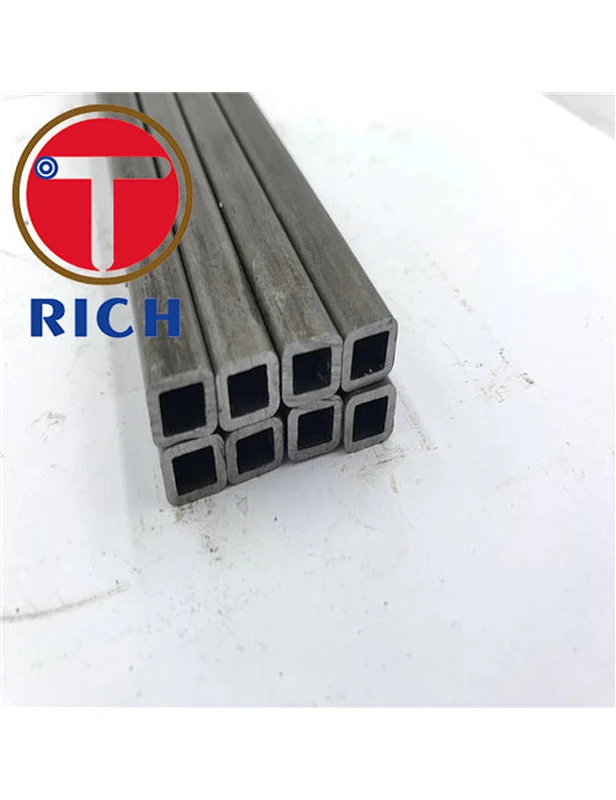

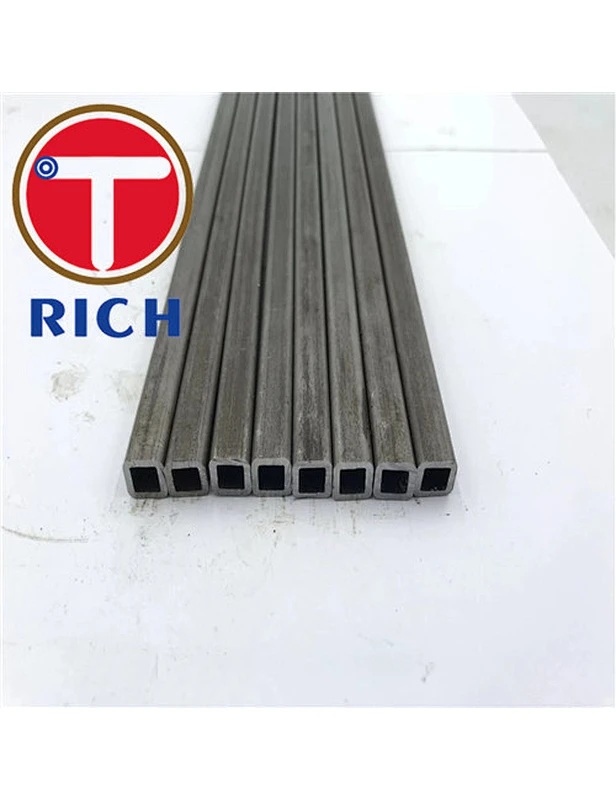

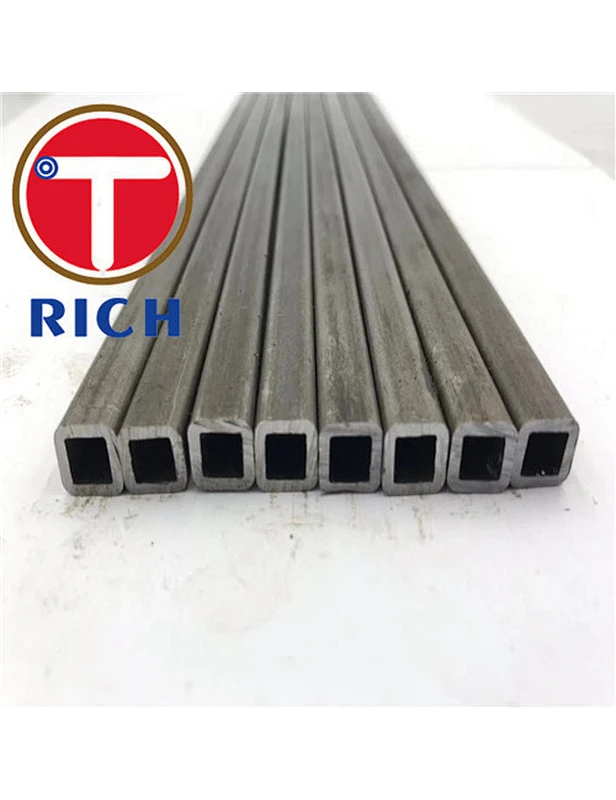

TORICH ASTM A500 Gr C Carbon MS Steel 1020 Shaped Small Diameter Structural Rectangle Seamless Square Tube
TORICH ASTM A500 Gr C Carbon MS Steel 1020 Shaped Small Diameter Structural Rectangle Seamless Square Tube
ASTM A500 (Also known as A-500) carbon steel tubing is a standard specification for cold-formed welded and seamless carbon steel structural tubing in round, square and rectangular shapes.
ASTM A500 is the most common specification in North America for Hollow Structural Sections (HSS).
Mechanical Properties:
| Tensile Strength (min): | Yield Strength (min): | Elongation: |
Gr A | 45,000 psi | 39,000 psi | 25% |
Gr B | 58,000 psi | 46,000 psi | 23% |
Gr C | 62,000 psi | 50,000 psi | 21% |
Gr D | 58,000 psi | 36,000 psi | 23% |
Application:
Structural Supports
Building columns
Highway Signs
Oil Field Services
Communication Towers

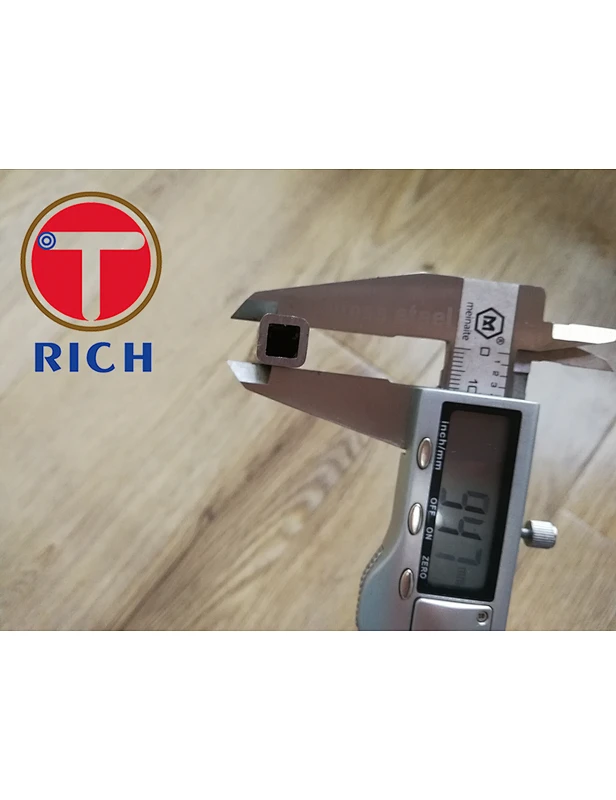

Detailed Images
QUALITY CONTROL
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
