USD900.00 - USD1500.00

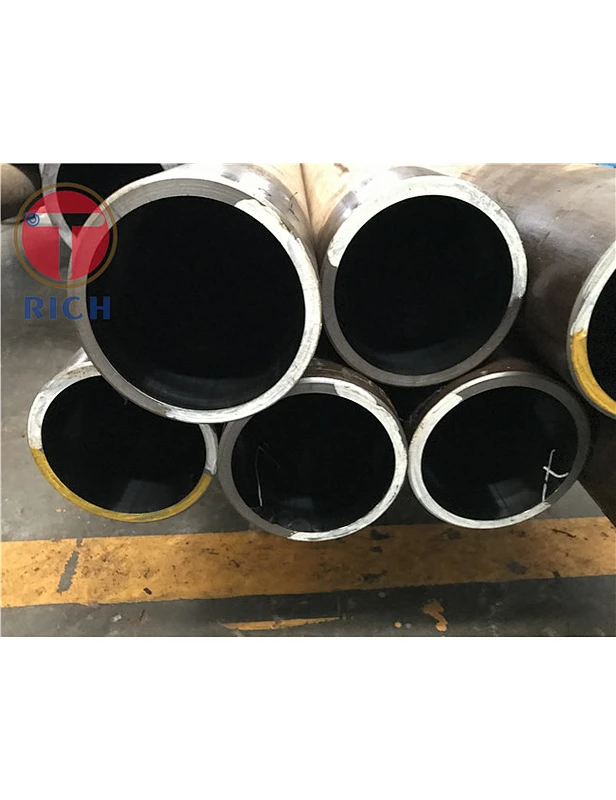

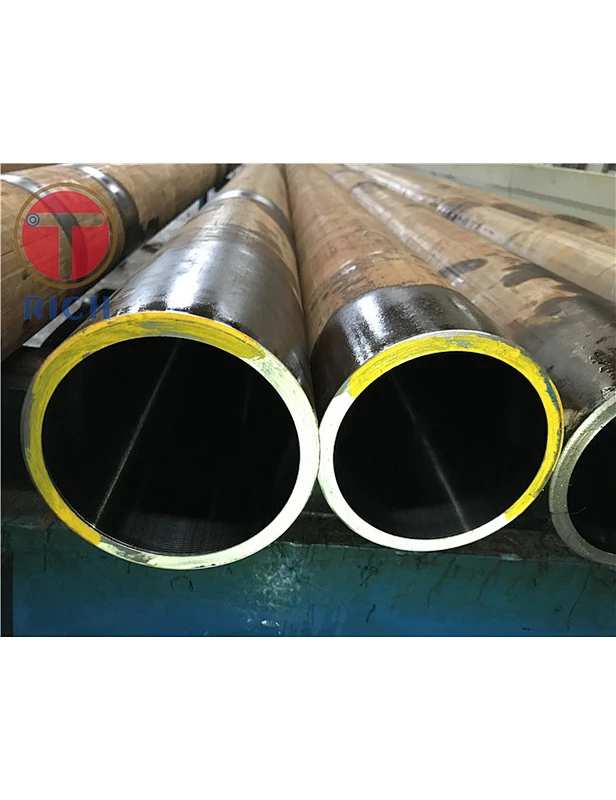

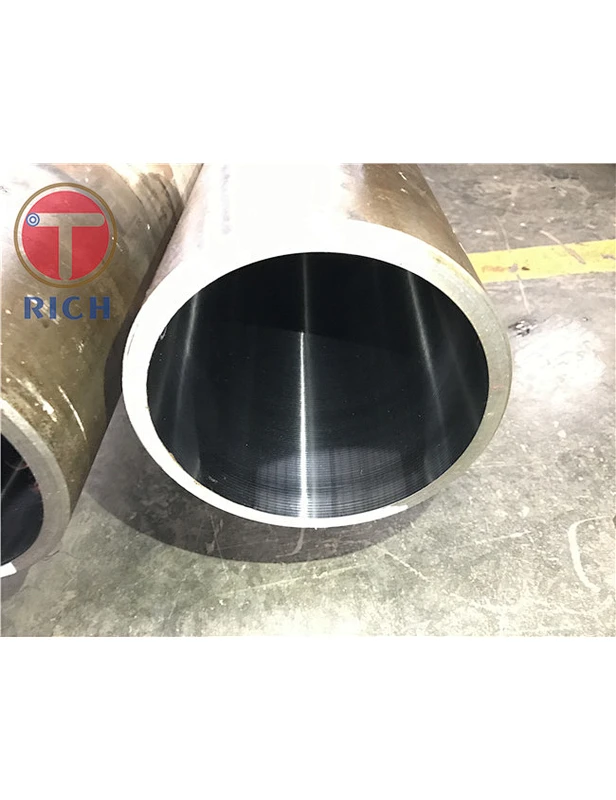

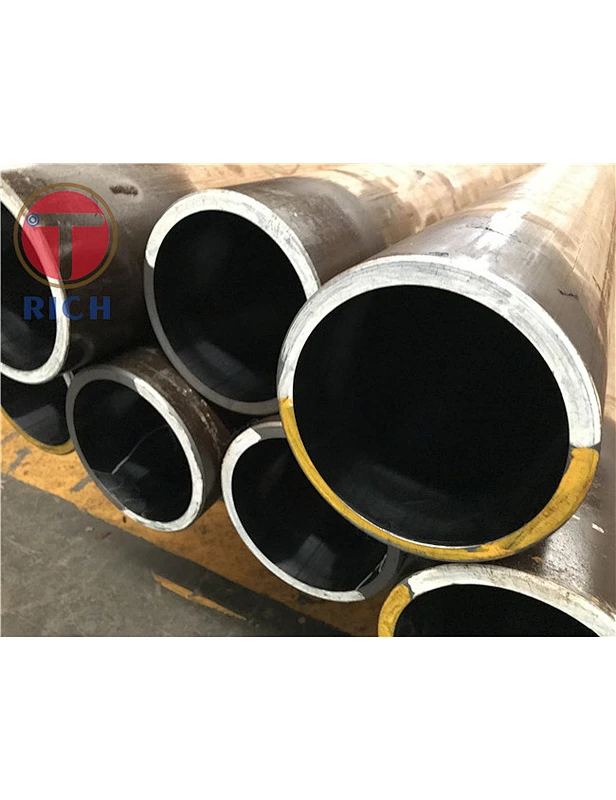

- Product name:TORICH Stainless steel honed hydraulic steel tube seamless Pipe
- Keyword:hydraulic steel tube
- Standard:EN10305-1
- Length:1-12m
- WT:0.5-12 mm
- OD:50-300 mm
- Technique:Cold Drawn+Honing Grinding
- Steel Grade:1020 St52 16Mn 1045
- Delivery Condition:SRA
- MTC:EN10204 3.1 B
- Standard:DIN
- Standard2:DIN 2391
- Grade Group:16Mn
- Grade:16Mn
- Grade Group:10#-45#
- Grade:10#
- Grade:20#
- Grade:45#
- Grade Group:ST35-ST52
- Grade:St52
- Section Shape:Round
- Application:Oil Pipe
- Technique:Cold Drawn
- Certification:CE
- Alloy Or Not:Non-alloy
- Tolerance:±10%
- Type:Seamless Steel Pipe
- Processing Service:Cutting
- Place of Origin:CN
- Thickness:0.5 - 12 mm
- Outer Diameter(Round):50 - 300 mm
1. Heat Treatment:
(+Cc)
Cold drawn /hard No heat treatment after the final cold drawing process.
(+LCc)
Cold drawn /Soft After the final heat treatment there is a suitable drawing pass
(+SR)
Cold drawn and stress relieved After the final cold drawing process there is a tress relieve heat treatment in a controlled atmosphere
(+Ad)
Annealed After the final cold drawing process the tubes are annealed in a controlled atmosphere
(+N)
Normalized After the final cold drawing operation the tubes are normalized in a controlled atmosphere
2.Main Application:
Stainless steel hydraulic tube is mainly used in hydraulic system.
3.Our products are widely used in:
Engineering machinery Machine tool industry Hydraulic industry Special vehicle
Automobile pipeline Heavy machinery Compressor Shipbuilding industry
Railway locomotive Diesel engine Utility boiler Injection molding machine
Power equipment Heavy duty automobile Forging and stamping machine
4.Main Characteristics:
No Oxidation Layer on the Outer and Inner Walls
No Crack under Flaring and Flattening
No Leakage under High Pressure
No Distortion after Cold Bending
High Precision High Cleanness Excellent Brightness
QUALITY CONTROL
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample of 304 316 Stainless steel Seamless square tube for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
TORICH 300mm Diameter ASTM A269 304 316 Stainless Steel Honed Pipe Bright Annealing for Hydraulic Cylinder
