USD1000.00 - USD3000.00
- Place of Origin:CN;ZHE
- Application:Heat Exchanger
- Brand Name:Torich
- Steel Grade:300 Series
- Outer Diameter:4.0-127mm
- Certification:ISO
- Thickness:0.5-12mm
- Standard:ASTM
- Standard:DIN
- Standard:JIS
- Type:Seamless
- Welding Line Type:Seamless
- Model Number:ANSI B36.19 / 36.10
- Product name:Stainless Steel Pipe
- Diameter:4.0-127mm
- WT:0.5-12mm
- Length:1-12m
- Transportation:Ocean, Land, Air
- Connection Type:Seamless, Welded
- Cross-Section Shape:Round
- Morphology:Liquid
- Terms of Trade:FOB, CFR, CIF
- Certificate:ISO9001, TS16949, ISO14001
ASTM SCH80 Seamless and Welded Tubes Stainless Steel Pipes
Torich is a manufacturer and trader for Annealed and Pickled Thin Wall Stainless Steel Tubing, with grade TP304/304L, TP316/316L, the products are exported to over 30 countries worldwide.
Size:ANSI /ASME size is under,other standard of size is for ready choice
O.D.:0.23''to 48''(5.8-1219mm)
W.T.:0.04''to 2''(1.0-50.8mm)
Length:Max.18 Meter
NPS 1/8''-48'' Schedule:5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S according to ANSI B36.19/36.10
Stainless Steel Pipe Surface finish:Annealed,Polished
Process Method:Cold Drawn/Cold Rolled
Delivery Condition:Annealed & Pickled
Torich's Chemical assurance
1.Each lot of raw materials will be tested by spectrometer before put in storage.
2.100%PMI the mother pipe to ensure we put right material.
2.100%PMI the finished pipe again to ensure we produced right grade
Heat Treatment Assurance
A full-automatic natural gas furnace with 24 meters in length.The real temperature tolerance could be within 10℃.
Application:Fluid and gas transport,Structure and machining.
Packing:Bundles for each piece then packed in seaworthy wooden cases.

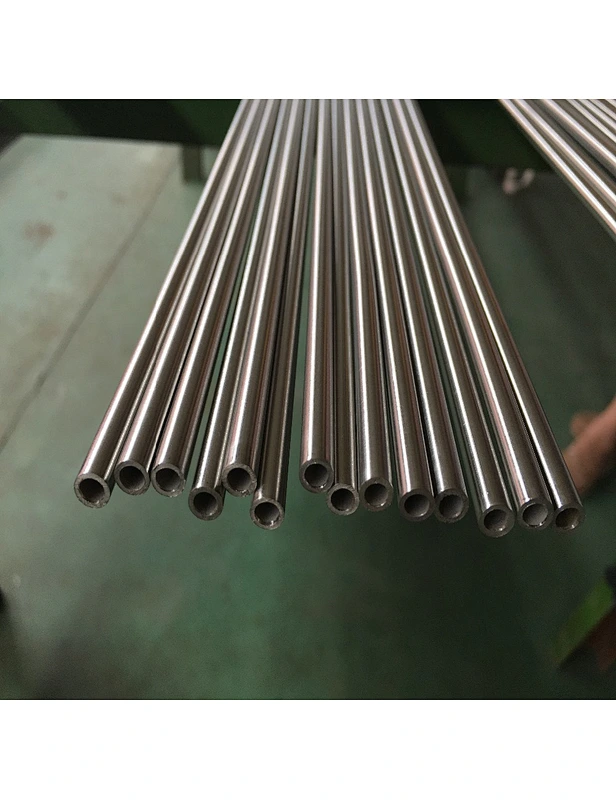

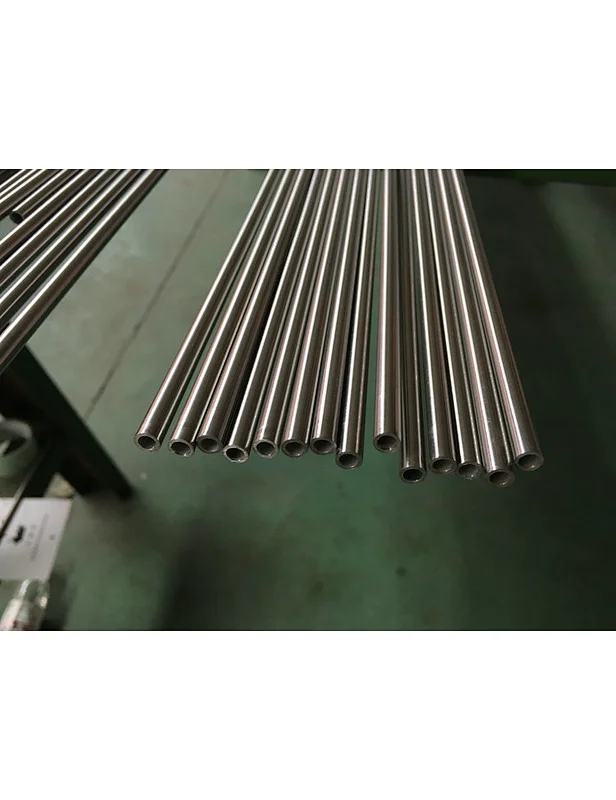

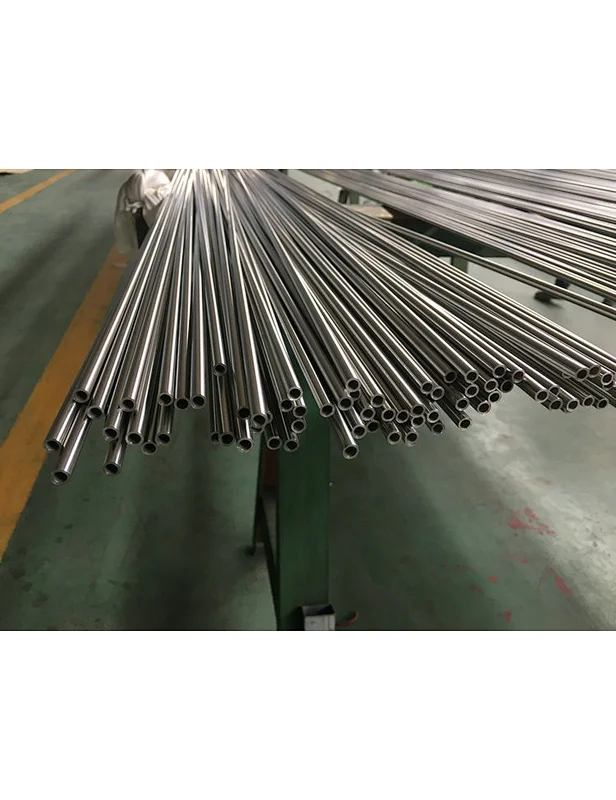

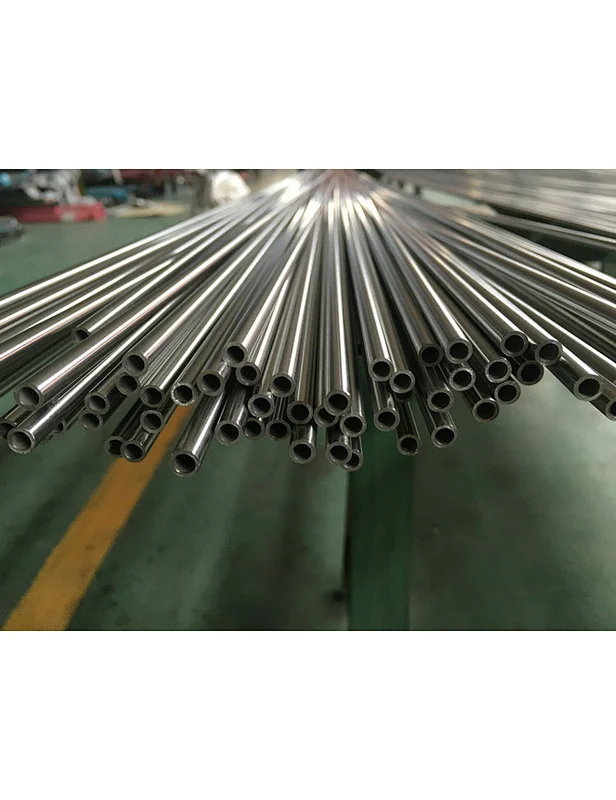

Detailed Images
QUALITY CONTROL
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
